Schneider Electric GV7AP02 Circuit Breaker Rotary Handle

Product Description

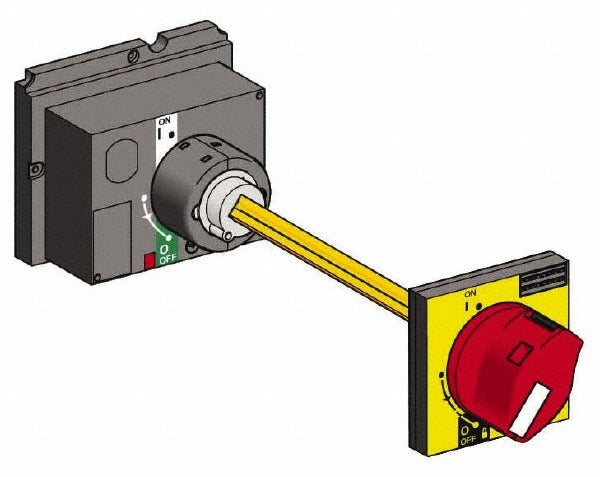

The SCHNEIDER ELECTRIC GV7AP02 is a rotary handle accessory designed for use with GV7R-series circuit breakers in TeSys motor control and protection systems. The rotary handle allows operators to manually switch the breaker on or off from outside an enclosure without opening the panel door, supporting both safety and lockout/tagout compliance. The unit measures 19.2 inches in length, 4.2 inches in width, and 3.9 inches in height, and weighs 1.58 pounds. This part is installed by licensed electricians during panel assembly or field upgrades where external manual operation of the circuit breaker is required.

The GV7AP02 rotary handle is intended for use with GV7R circuit breakers within the Schneider Electric TeSys product family. It is commonly installed in industrial motor control centers, machine control panels, and commercial electrical enclosures where external operator access to the breaker is needed. It suits both original equipment installations and field retrofits on existing GV7R breaker assemblies.

Key Features

• Provides external rotary on/off operation of the circuit breaker without opening the enclosure
• Compatible accessory for GV7R circuit breakers in TeSys motor protection systems
• Compact form factor: 19.2 inches long, 4.2 inches wide, 3.9 inches tall
• Lightweight at 1.58 pounds for straightforward panel installation
• Supports lockout/tagout procedures for electrical safety compliance

Compatibility

Designed for use with GV7R circuit breakers and TeSys motor protection and control systems by Schneider Electric.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before mounting or adjusting the rotary handle assembly. Verify that the handle actuator aligns correctly with the breaker operator mechanism before securing the enclosure. Do not force the handle mechanism if resistance is felt, as misalignment can damage the breaker operator.
