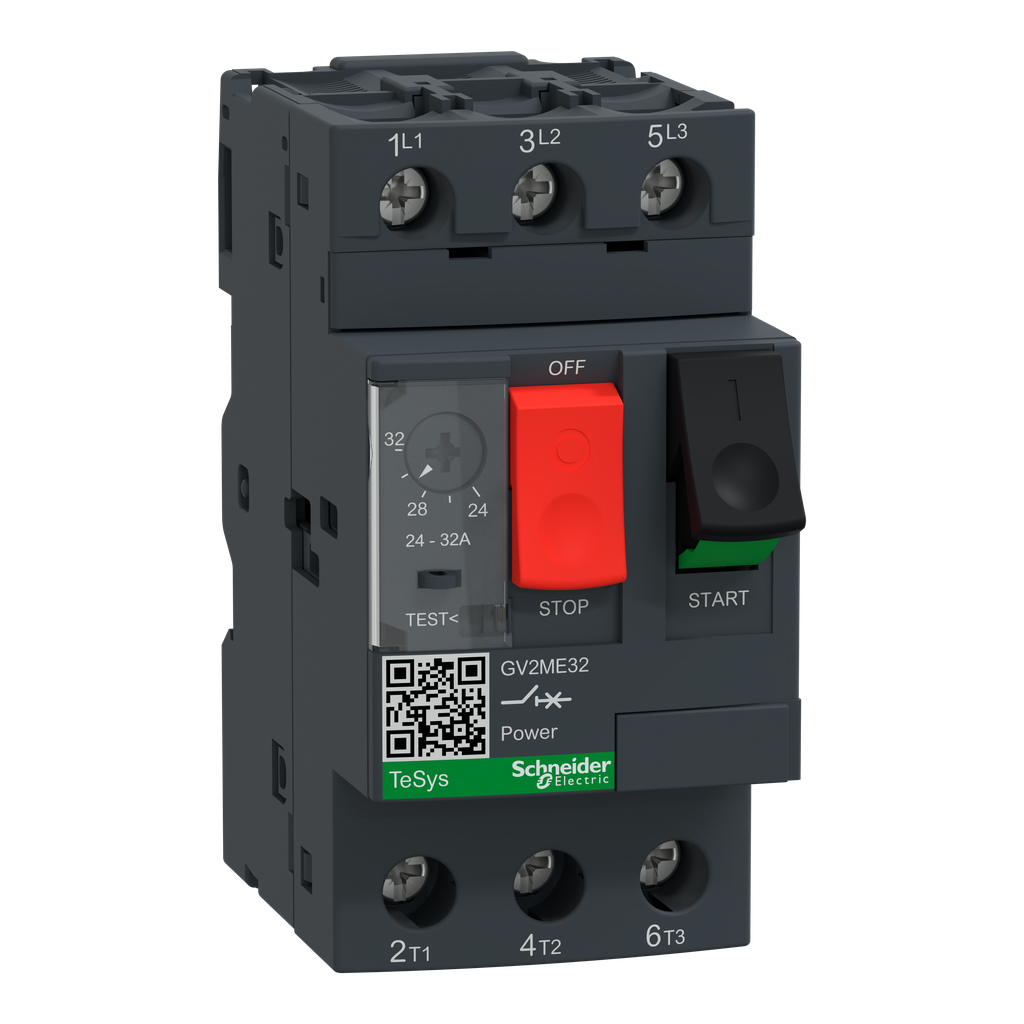

Schneider Electric GV2ME32 Manual Motor Starter 24 to 32A 3 Pole Screw Clamp Terminals

Product Description

The Schneider Electric GV2ME32 Manual Motor Starter provides reliable motor control and protection. It is designed to handle full load currents of up to 32 amps. This manual starter operates with push buttons, ensuring straightforward manual isolation and thermal overcurrent protection in one compact unit.

• Manual isolation and motor control
• Thermal overcurrent protection
• Push button operation

Product Highlights

Ideal for industrial applications, the GV2ME32 is rated for a maximum voltage of 690 volts and features a three-pole design. It is certified by multiple standards like IEC, UL, and CSA. The screw clamp terminals ensure secure connections and easy installation.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: GV2ME32
• Product Type: Manual Motor Starter

Technical Specifications

• Voltage: 690 Volts
• Amperage: 24 to 32 Amps
• Number of Poles: 3
• Operating Temperature: -20 to 60 degrees Celsius
• Storage Temperature: -40 to 80 degrees Celsius
• Terminal Type: Screw clamp
• Dimensions: Width 1.75 inches, Height 3.5 inches, Depth 3.03 inches
• Certifications: IEC, UL, CSA, CCC, EAC, Marine, ATEX
• Enclosure: IP20 conforming to IEC 60529
• Weight: 0.57 pounds
• Country of Origin: France
