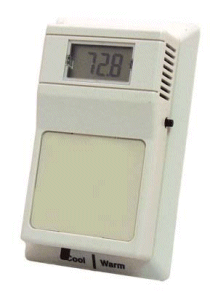

Schneider Electric ETR501-LCD Room Temperature Sensor

Product Description

The Schneider Electric ETR501-LCD is a room temperature sensor designed for HVAC applications. It features a 10K Ohm type 3 thermistor that ensures compatibility with Continuum systems. This sensor provides accurate temperature readings displayed in Fahrenheit on its LCD screen.

• Accuracy of +/- 0.4 F (+/- 0.2 C)
• Output of 10K Ohms at seventy-seven F (twenty-five C)
• Operating temperature range from -40 to 302 F (-40 to 150 C)

Product Highlights

This product is mounted on walls and is ideal for residential or commercial spaces. It supports a relative humidity range of zero to ninety percent, non-condensing, making it suitable for various indoor environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US
• Product Type: Sensor

Technical Specifications

• MPN: ETR501-LCD
• Depth: twenty-nine mm
• Height: one hundred four mm
• Width: seventy mm
• Temperature Resolution: 0.1 °C
• Display Accuracy: 0.1 °C
• Device Application: Wall installation
• Humidity Range: 0-90 % RH
