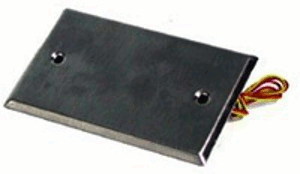

Schneider Electric ETP800 temperature sensor 10K Ohm Thermistor

Product Description

The Schneider Electric ETP800 is a temperature sensor designed for wall installation. It features a 10K Ohm thermistor with an 11K shunt. This sensor offers accurate temperature readings within a range from minus forty degrees Fahrenheit to three hundred two degrees Fahrenheit. It is suitable for measuring outside air temperature and operates effectively with a relative humidity of zero to ninety percent.

• High accuracy: +/- 0.2 C
• Compatible with I/A systems
• Durable design for various environments

Product Highlights

Reliable temperature sensor for HVAC applications and indoor environments.

Product Information

Standard Information

• Device Application: Wall installation
• Type of Measurement: Temperature

Technical Specifications

• Operating Temperature Range: -40 F to 302 F (-40 C to 150 C)
• Accuracy: +/- 0.2 C
• Housing Color: Steel

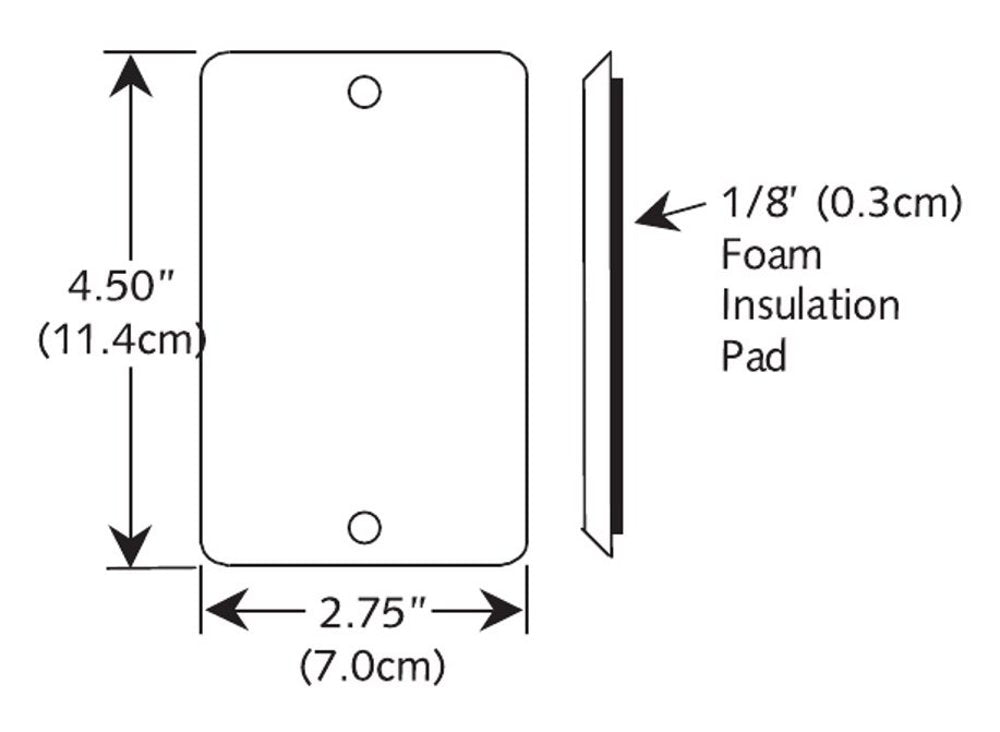

• Dimensions: 70 mm width, 114 mm height, 3 mm depth
• Response Time: Not specified
• Weight: 0.635 kg
• Sensor Type: 10 kOhm thermistor with 11 kOhm shunt
