Schneider Electric ETDPK0-NE-4 temperature sensor 4 duct

Product Description

Schneider Electric's ETDPK0-NE-4 is a temperature sensor designed for duct applications. This sensor is intended for accurate temperature measurement in HVAC systems. It features a 1K Ohm platinum resistance output at thirty-two degrees Fahrenheit.

• Type: Duct Temperature Sensor
• Accuracy: +/- 1.0 Ohm at seventy degrees Fahrenheit
• Operating Range: -50 Fahrenheit to 275 Fahrenheit

Product Highlights

This product is suitable for monitoring temperature in various HVAC installations. The sensor does not include an enclosure, which allows flexible mounting options.

Product Information

Standard Information

• Brand: Schneider Electric
• Type of Measurement: Temperature

Technical Specifications

• MPN: ETDPK0-NE-4
• Operating Temperature: -50 F to 275 F
• Resistance: 1K Ohm at 32 F
• Accuracy: +/- 1.0 Ohm at 70 F

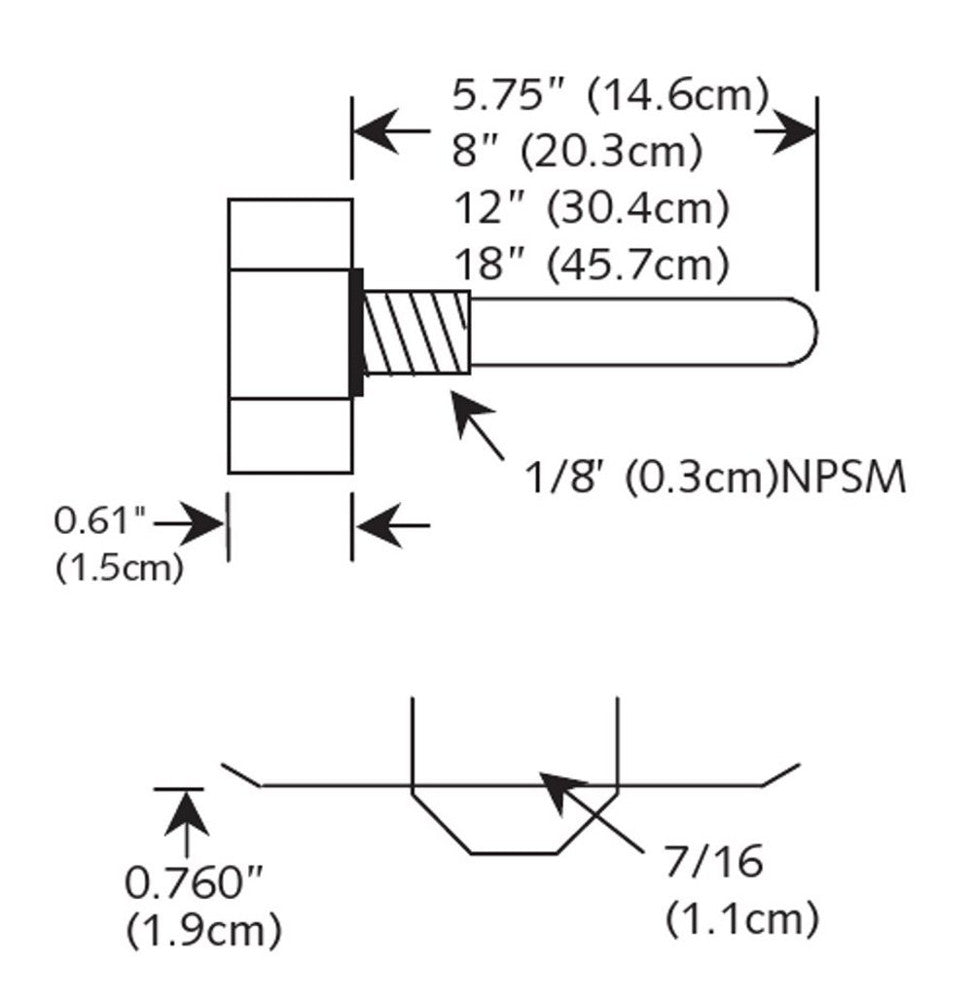

• Dimensions: Width 54 mm, Height 102 mm, Depth 43 mm
• Relative Humidity Range: 0-90 % RH, non-condensing
• Mounting Mode: Duct
