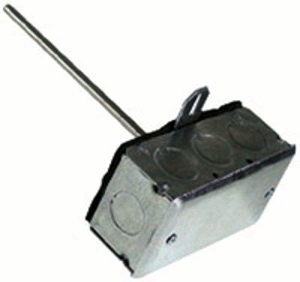

Schneider Electric ETDPK0-4 Temperature Sensor 4 Duct Replacement MPN

Product Description

The Schneider Electric ETDPK0-4 is a temperature sensor designed for use in duct applications. It is a 4 duct, single-point temperature sensor that provides accurate readings essential for HVAC systems. With a maximum accuracy of +/- 1.0 Ohm at seventy degrees Fahrenheit, this sensor operates across a wide temperature range of negative fifty degrees Fahrenheit to two hundred seventy-five degrees Fahrenheit.

Key features include:

• 1K Ohm platinum sensor
• Galvanized steel enclosure for durability
• Output of 1K Ohm at zero degrees Celsius

Product Highlights

This temperature sensor is ideal for various HVAC applications, providing reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Schneider Electric
• Product or Component Type: Sensor

Technical Specifications

• Measurement Type: Temperature
• Accuracy: +/- 1.0 Ohm
• Operating Temperature Range: -50 F to 275 F
• Output: 1K Ohm
• Housing Material: Galvanized steel
• Relative Humidity for Operation: 0-90 % RH, non-condensing

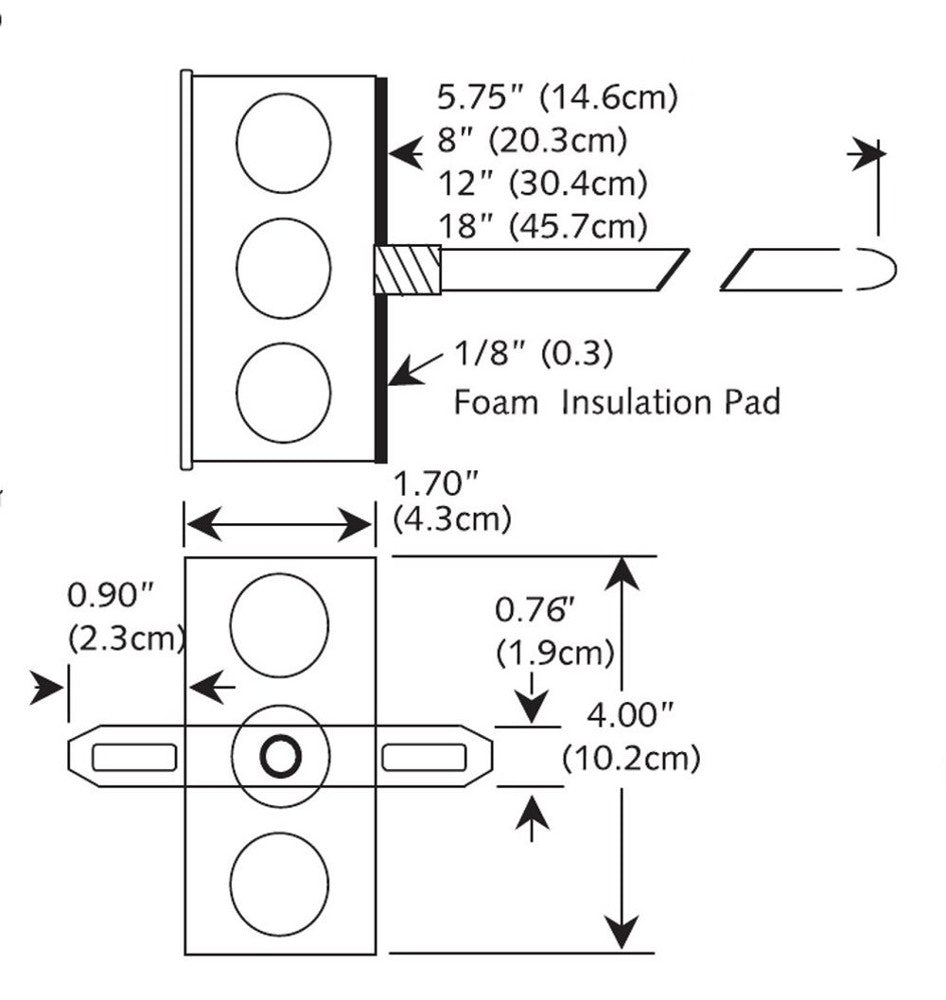

• Depth: 43 mm
• Height: 102 mm
• Width: 54 mm
