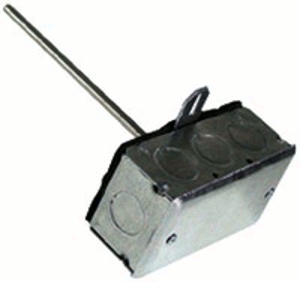

Schneider Electric ETD100-18 temperature sensor power 18 duct none

Product Description

The Schneider Electric ETD100-18 is a temperature sensor designed for HVAC applications. This sensor features a thermistor with an accuracy of plus or minus 0.2 degrees Celsius. With a galvanized steel enclosure, it can operate in a range of temperatures from minus forty degrees Fahrenheit to three hundred two degrees Fahrenheit.

• Compatibility with Vista systems
• Ideal for duct applications
• Durable steel construction

Product Highlights

This temperature sensor provides reliable measurements for environment monitoring in duct systems.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: ETD100-18

Technical Specifications

• Sensor Type: 1.8 kOhm thermistor
• Operating Temperature: -40 F to 302 F

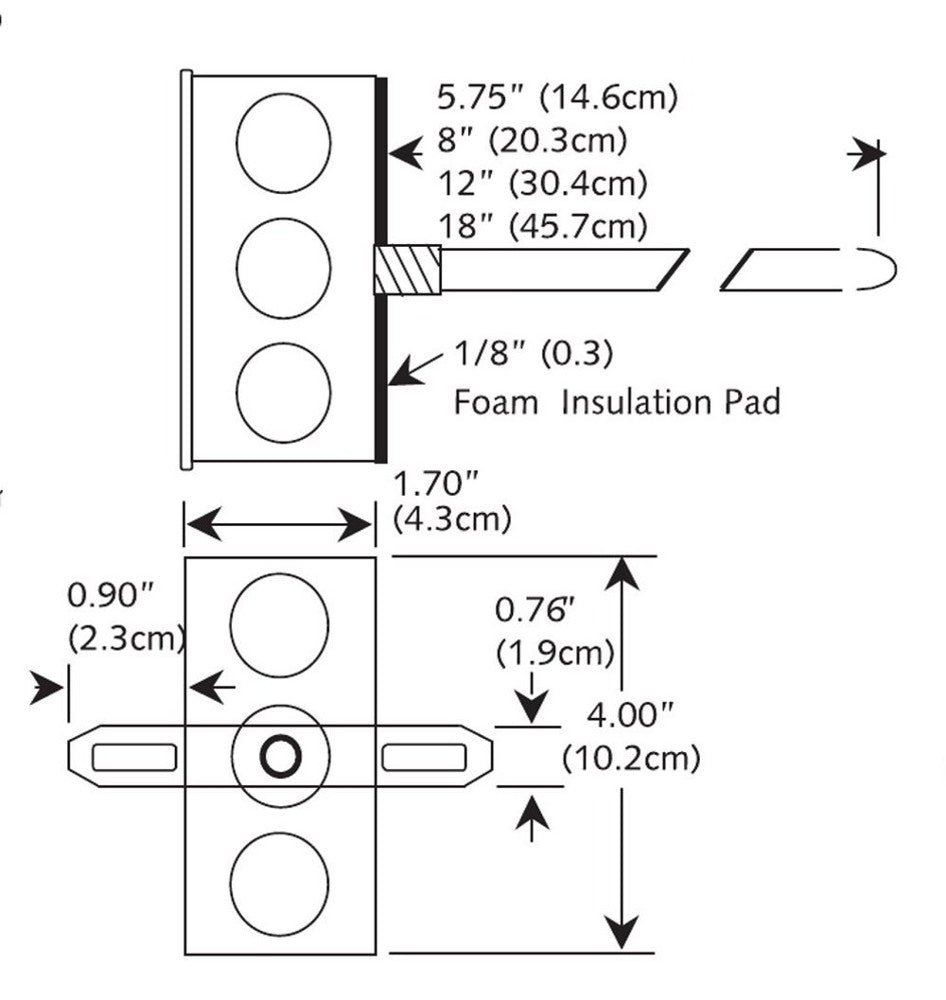

• Dimensions: 43 mm depth, 102 mm height, 54 mm width
• Relative Humidity: 0-90 % RH, non-condensing
• Output: 1 kOhm at 70 F
• Accuracy: +/- 0.06% at 32 F
• Mounting Location: Plant room, duct
• Environmental Protection: Steel enclosure
