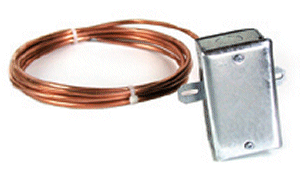

Schneider Electric ETA100-24 Temperature Sensor 24' Duct Averaging

Product Description

The Schneider Electric ETA100-24 is a temperature sensor designed for HVAC applications, specifically for 24 foot duct averaging. This sensor features a flexible copper installation and provides accurate readings with a tolerance of plus or minus 0.2 degrees Celsius. It incorporates a 1.8K Ohm thermistor for reliable performance and is compatible with Vista systems.

• Flexible copper construction for easy installation
• Operating temperature range from negative forty degrees Fahrenheit to three hundred two degrees Fahrenheit
• 1.8K Ohm thermistor output at seventy-seven degrees Fahrenheit

Product Highlights

This temperature sensor is ideal for use in chillers and heat exchangers where precision temperature measurement is critical. It operates effectively across varied environments, ensuring robust performance even under extreme conditions.

Product Information

Standard Information

• Device Application: Chiller, heat exchanger averaging
• Location: Plant room

Technical Specifications

• Type of Measurement: Temperature
• Sensor Type: 1.8 kOhm thermistor
• Operating Temperature: -40 F to 302 F (-40 C to 150 C)
• Accuracy: +/- 0.2 C (0 C to 70 C)

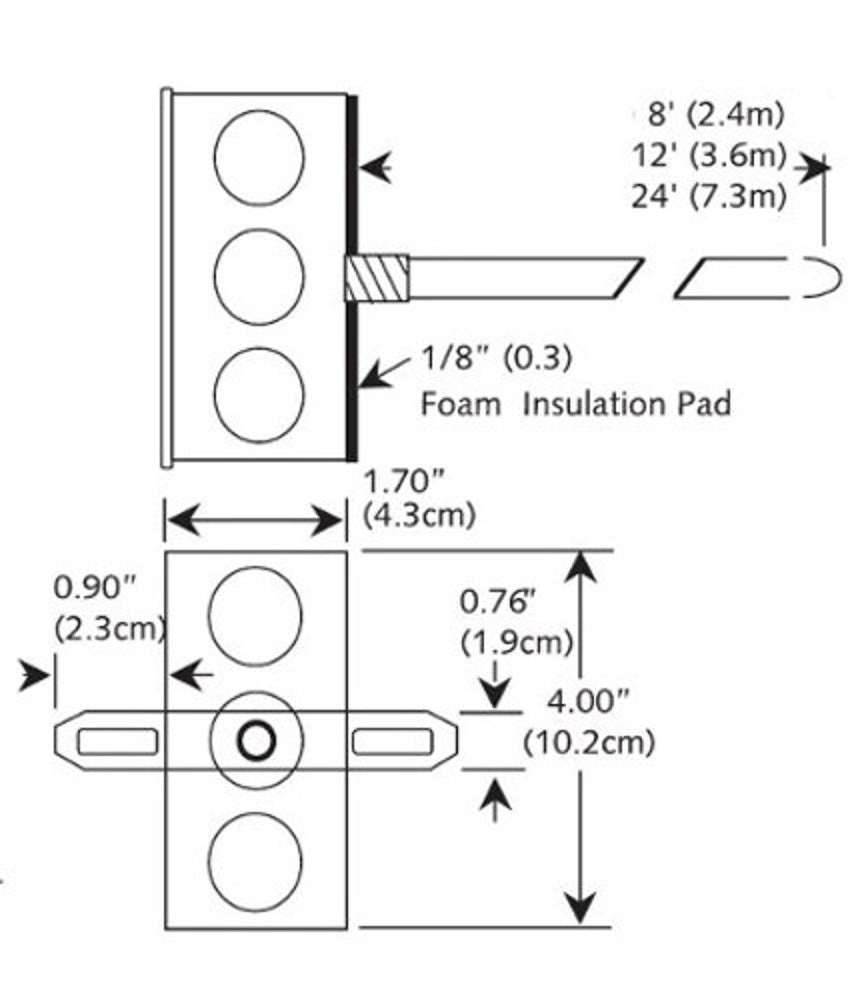

• Dimensions: Depth 43 mm, Height 102 mm, Width 54 mm
• Relative Humidity: 0-90 % RH, non-condensing
• Output: 1.8K Ohms at 77 F (25 C)
