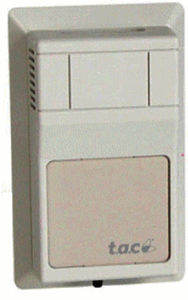

Schneider Electric EHR110-503 humidity sensor

Product Description

The Schneider Electric EHR110-503 is a humidity sensor designed for wall installation in living spaces. This device measures relative humidity and temperature with an accuracy of 2%. It offers multiple field-selectable output options for flexibility in applications.

• Accuracy of 2%
• Measures humidity and temperature
• Field selectable outputs: 4-20mA, 0-5 VDC, 0-10 VDC

Product Highlights

The EHR110-503 provides reliable humidity readings in non-condensing environments. It handles a humidity range of 0-95% RH, recovering from saturation quickly, making it suitable for various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Device Application: Wall installation

Technical Specifications

• Temperature Measurement Type: 10 kOhm type 3 thermistor
• Humidity Measurement Resolution: 0.1 % RH
• Output Types: 4-20mA, 0-5 VDC, 0-10 VDC
• Dimensions: 70 mm width, 115 mm height, 29 mm depth
• Power Supply Voltage: 15...36 V DC, 22...26 V AC
• Humidity Range: 0-95% RH, non-condensing
• Weight: 0.26 lb
