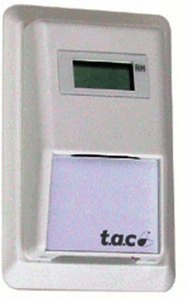

Schneider Electric EHR110-500-LCD humidity sensor

Product Description

The Schneider Electric EHR110-500-LCD is a relative humidity and temperature combo sensor designed for wall installation. This product allows for single-point field calibration and offers selectable output signals for versatility in applications.

• Field selectable outputs include 4-20 mA, 0-5 VDC, and 0-10 VDC
• Precision accuracy of plus or minus 2%
• Low drift for long-term reliability

Product Highlights

Ideal for use in living spaces, this sensor features an LCD display for easy reading of humidity and temperature levels.

Product Information

Standard Information

• Country of Origin: US
• Brand: Schneider Electric

Technical Specifications

• Device Type: Sensor
• Measurement Type: Humidity, Temperature
• Response Time: 0.1 % RH

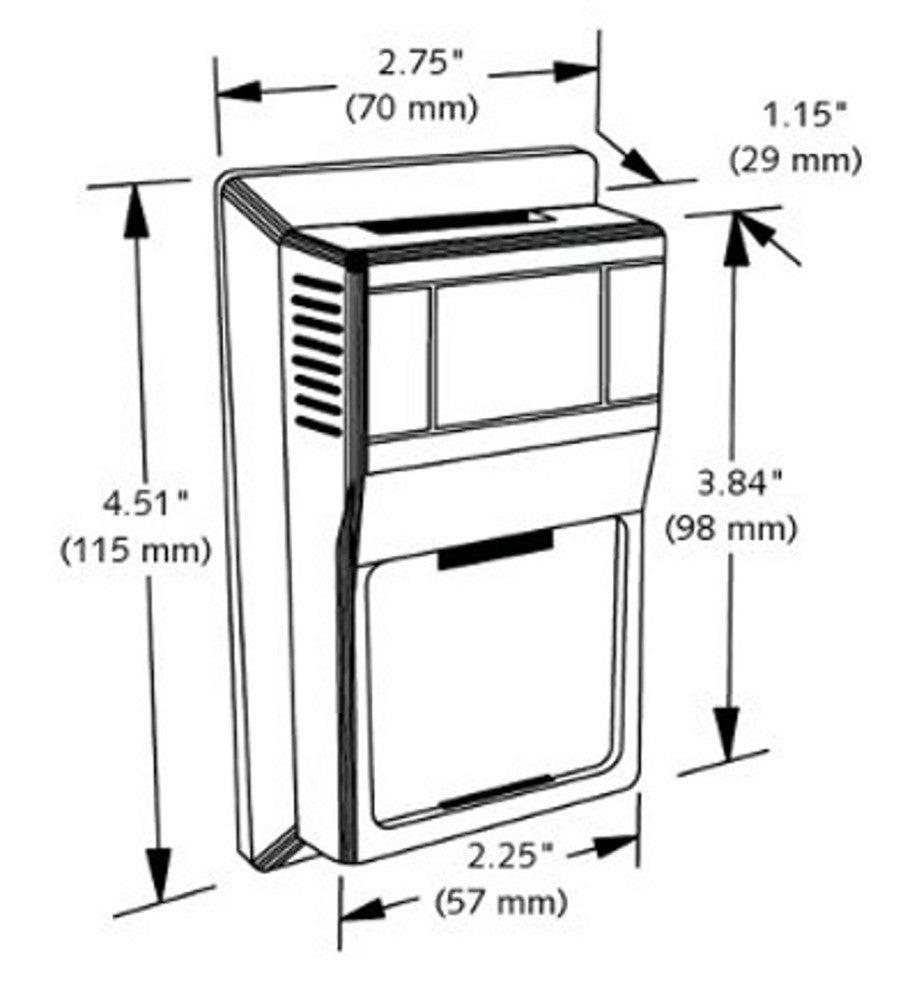

• Height: 115 mm
• Width: 70 mm
• Depth: 29 mm
• Input Voltage: 15...36 V DC | 22...26 V AC
• Humidity Measurement Drift: Less than 2%, for 5 years
