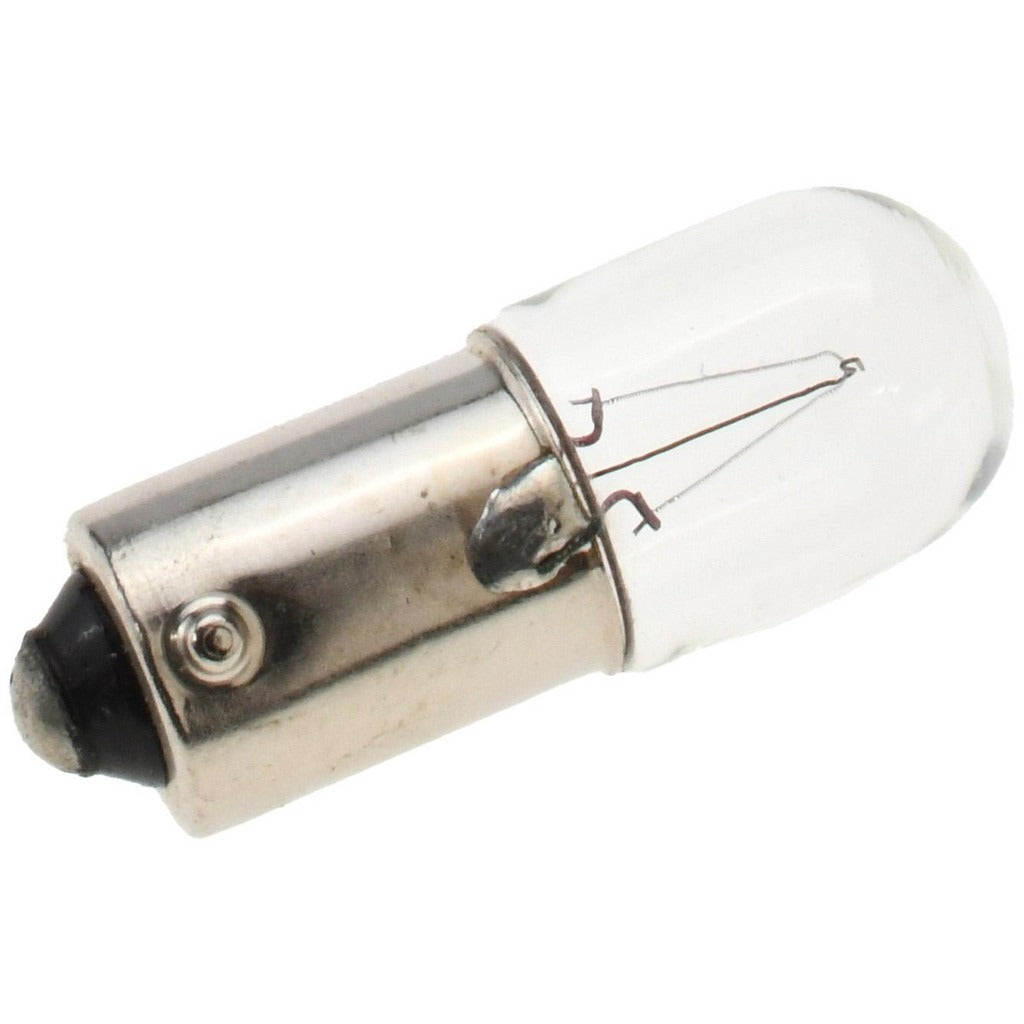

Schneider Electric DL1CE012 Pushbutton Switch Bulb

Product Description

The SCHNEIDER ELECTRIC DL1CE012 is a clear incandescent replacement bulb designed for illuminated pushbutton switches. It serves as the light source inside illuminated operator assemblies, providing the visual feedback that confirms switch activation or system status on control panels and machinery. Electricians and control panel technicians install this bulb as a direct service replacement when the existing lamp burns out. At 1.1 inches in length and 0.3 inches in both height and width, it is a compact component sized specifically for compatible Harmony series pushbutton housings. Its clear lens allows the indicator light to show through without altering the color of the operator cap.

This bulb is suited for use in industrial and commercial control panel applications where illuminated pushbutton operators are mounted in enclosures, operator stations, or machine control surfaces. It is rated for Harmony XAC series illuminated pushbutton assemblies. Typical install scenarios include replacing burned-out lamps during routine maintenance on production equipment, HVAC control panels, pump stations, and similar electromechanical systems where operator feedback lighting is required.

Key Features

• Clear incandescent lamp provides unfiltered white illumination through the operator cap
• Compact form factor at 1.1 inches length and 0.3 inches width and height for tight pushbutton housings
• Designed for Harmony XAC series illuminated pushbutton operators
• Single-unit packaging allows for targeted spare-parts stocking without excess inventory
• Switch accessory type classified as a direct bulb replacement component

Compatibility

Designed for use with Harmony XAC series illuminated pushbutton assemblies as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician. De-energize the control panel and verify the circuit is at zero voltage before accessing the pushbutton assembly to replace the bulb. Avoid touching the bulb glass with bare fingers, as skin oils can reduce incandescent lamp service life. Follow applicable NEC requirements for control wiring and panel maintenance procedures.
