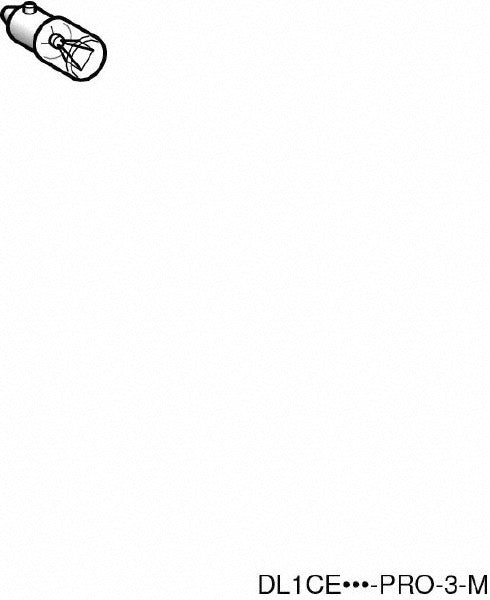

Schneider Electric DL1CB006 Pushbutton Switch Bulb

Product Description

The SCHNEIDER ELECTRIC DL1CB006 is a clear incandescent replacement bulb designed for illuminated pushbutton switches. This lamp provides the internal light source that makes indicator-style pushbuttons visible in low-light panel environments. It is a direct switch accessory component, installed inside compatible illuminated operator heads to restore or maintain proper indication function. The bulb is compact, measuring 1 inch in length with a 0.3-inch height and 0.3-inch width, and weighs just 0.01 pounds. Licensed electricians and panel technicians are the typical installers of this type of component during routine maintenance or lamp-out service calls on control panels and operator stations.

This bulb is suited for use in industrial and commercial control panel applications where illuminated pushbutton operators signal machine status, run conditions, or fault states. It is intended for installation into Harmony XAC series illuminated pushbutton assemblies. These operator stations appear in manufacturing equipment, motor control panels, conveyor systems, and similar industrial automation environments. The DL1CB006 is sold and packaged individually, making it appropriate for single-unit lamp replacement without the need to purchase in bulk.

Key Features

• Clear incandescent lamp provides standard white indication through the pushbutton lens
• Designed as a switch accessory bulb for illuminated pushbutton operator heads
• Compact form factor: 1 inch length, 0.3 inches height, 0.3 inches width
• Lightweight at 0.01 pounds for easy handling during panel service
• Single-unit packaging supports one-for-one replacement on service calls

Compatibility

Designed for use with Harmony XAC series illuminated pushbutton assemblies from SCHNEIDER ELECTRIC. Verify the specific lamp base type and voltage rating of the operator head before installation to confirm fitment.

Installation Notes

Installation of this bulb should be performed by a qualified electrician or trained panel technician. Always de-energize the control panel and confirm zero voltage at the operator station before removing or installing any lamp component. Follow applicable NEC guidelines for control panel service. Avoid touching the glass envelope of incandescent bulbs with bare hands, as skin oils can reduce lamp service life.
