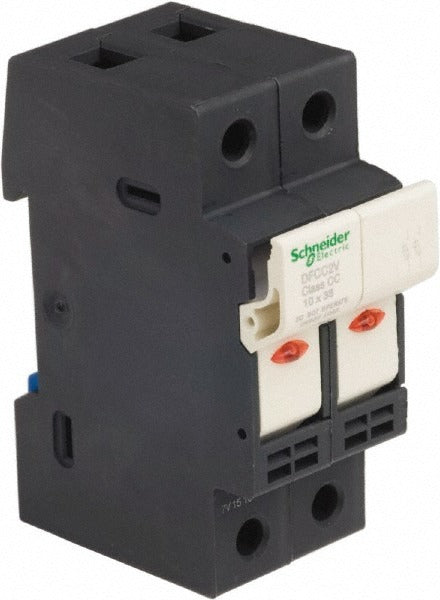

Schneider Electric DFCC2V Din Rail Fuse Holder 30A 600V

Product Description

The SCHNEIDER ELECTRIC DFCC2V is a two-pole, DIN rail mount fuse holder rated for 30 amps and 600 volts. It accepts CC Class fuses and mounts on standard 35mm DIN rail, making it a compact and reliable overcurrent protection component for panel and enclosure builds. Screw terminations provide secure wire connections. Electricians and panel builders install this holder in industrial control panels, commercial electrical enclosures, and machine control applications where branch circuit fuse protection is required.

This fuse holder is suited for use in industrial and commercial electrical installations where space-efficient DIN rail mounting is needed. The two-pole configuration handles a single two-pole fused circuit in a single assembly. Its 600-volt rating accommodates both single-phase and three-phase branch circuit applications at standard commercial voltages. Panel builders integrating CC Class fusing into DIN rail assemblies will find this a direct fit for standard enclosure layouts.

Key Features

• Two-pole design handles both poles of a fused circuit in one compact unit
• 600-volt rating suitable for single-phase and three-phase commercial applications
• 30-amp maximum current rating for branch circuit overcurrent protection
• Compatible with CC Class fuses for current-limiting protection
• Mounts on standard 35mm DIN rail for fast, tool-friendly panel installation
• Screw wire termination type ensures secure, code-compliant connections

Compatibility

Designed for use with CC Class fuses. Mounts on standard 35mm DIN rail. Suitable as an OEM-style or replacement fuse holder in DIN rail-based electrical panels and enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the panel and verify absence of voltage before installing or servicing the fuse holder. Secure all screw terminations to the wire manufacturer and panel design specifications. Ensure the fuse class and rating installed in the holder match the circuit protection requirements of the design.
