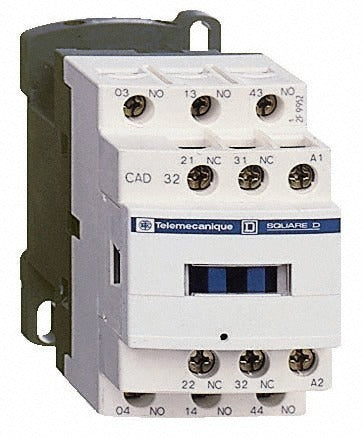

Schneider Electric CAD32E7 Control Relay 2NC 3NO 48VAC

Product Description

The SCHNEIDER ELECTRIC CAD32E7 is an AC control relay designed for industrial and commercial control circuit applications. It features a 2NC/3NO contact configuration and operates on a 48 VAC coil voltage at 50/60 Hz. This relay serves as a switching and logic element in control panels, motor starters, and automation systems. Licensed electricians and industrial controls technicians typically install and service this type of device. Its compact form factor allows installation in tight panel enclosures where space is limited.

The CAD32E7 is suited for use in commercial and industrial electrical control systems where AC relay logic is required. Typical applications include motor control centers, machine control panels, and building automation systems that use 48 VAC control circuits. This relay is appropriate for facilities maintenance electricians and industrial automation professionals working on relay-logic or contactor-based control schemes.

Key Features

• 2NC/3NO contact configuration for flexible control circuit wiring
• 48 VAC coil voltage rated for 50/60 Hz operation
• Compact dimensions suitable for panel-mount installation
• AC control circuit type for standard industrial control applications

Compatibility

Designed as an OEM-style replacement control relay for industrial and commercial AC control circuit applications requiring a 48 VAC, 50/60 Hz coil with a 2NC/3NO contact arrangement.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the control panel before removing or installing this relay. Verify coil voltage matches the control circuit supply before energizing. Inspect contact ratings against the connected load before placing the relay into service.
