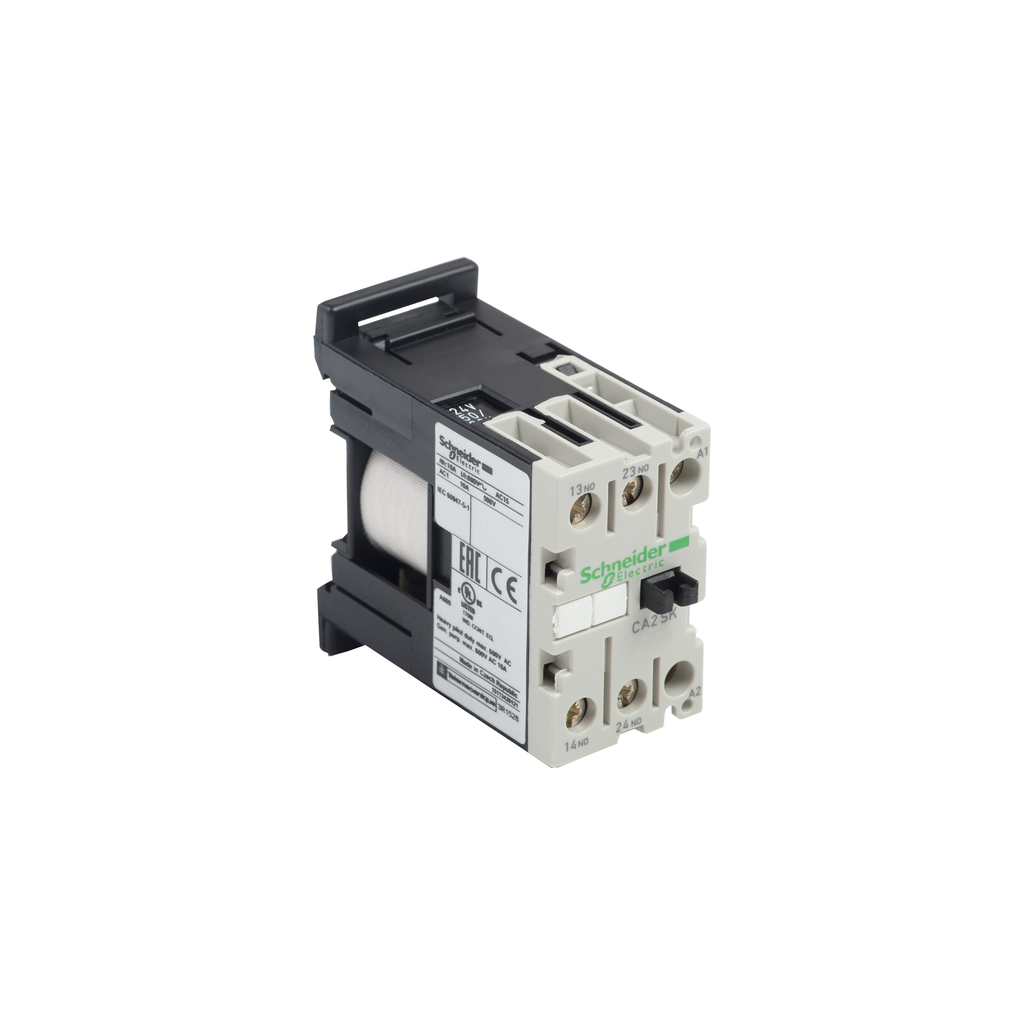

Schneider Electric CA2SK20G7 Control Relay 120 VAC 10 Amp 4-Pole 2NO

Product Description

The Schneider Electric CA2SK20G7 is a control relay designed for efficient operation in industrial applications. It operates at 120 volts AC and provides 10 amps of current with a maximum voltage rating of six hundred ninety volts. This relay has two normally open contacts and is suitable for various control circuit applications.

• Designed for control applications
• Voltage: 120 VAC and 690 V max
• Meets CSA and UL standards

Product Highlights

This relay is part of the TeSys SK range and features a robust design for dependable performance in control systems. It is ideal for HVAC systems, motor control, and automation processes.

Product Information

Standard Information

• Catalog Number: CA2SK20G7
• Brand: Schneider Electric

Technical Specifications

• Type: Control relay
• Voltage: 690 V
• Amperage: 10 Amp at or below 55 °C
• Height: 56 mm
• Width: 27 mm
• Depth: 55.5 mm
• Weight: 0.29 lb
• Operating Temperature: -20 to 50 degrees C
• Storage Temperature: -50 to 70 degrees C
• Country of Origin: Czech Republic
