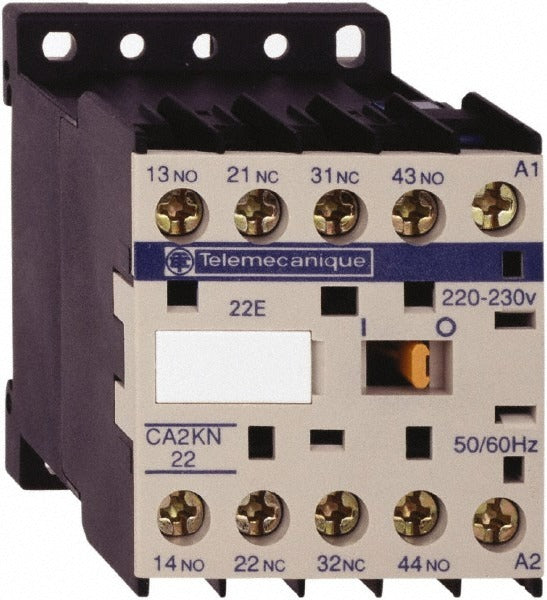

Schneider Electric CA2KN22U7 Control Relay 2NC 2NO 230-240V

Product Description

The SCHNEIDER ELECTRIC CA2KN22U7 is a control relay designed for industrial and commercial electrical control circuits. It features a 2NC/2NO contact configuration, giving technicians two normally closed and two normally open contacts in a single compact device. The coil operates on 230-240 VAC at 50/60 Hz, making it compatible with standard single-phase AC control voltage across North American and international 50 Hz installations. Weighing 0.39 pounds, this relay is a direct replacement or service part suited for panel builders, electricians, and automation technicians maintaining control logic circuits.

This relay is applied in motor control centers, machine control panels, HVAC control circuits, and other industrial automation environments where switching of low-power control signals is required. Its dual-coil-frequency rating allows installation in facilities running either 50 Hz or 60 Hz supply systems. The compact footprint makes it a practical fit in densely wired enclosures where space is limited. Licensed electricians and panel technicians are the primary installers in commercial and light industrial settings.

Key Features

• 2NC/2NO contact arrangement provides flexible control logic in a single relay body
• Coil rated for 230-240 VAC at 50/60 Hz for broad installation compatibility
• Compact dimensions of 2.6 inches height, 2.4 inches width, and 1.9 inches length
• Lightweight at 0.39 pounds, suitable for dense panel layouts
• Sold individually with a package quantity of one

Compatibility

Designed as an OEM-style replacement control relay for AC control circuits operating at 230-240 VAC, 50/60 Hz in industrial and commercial panel applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize the control panel and verify zero voltage at all terminals before handling or replacing this relay. Confirm coil voltage and contact configuration match the existing circuit requirements before installing. Do not exceed the relay contact ratings for the connected load.
