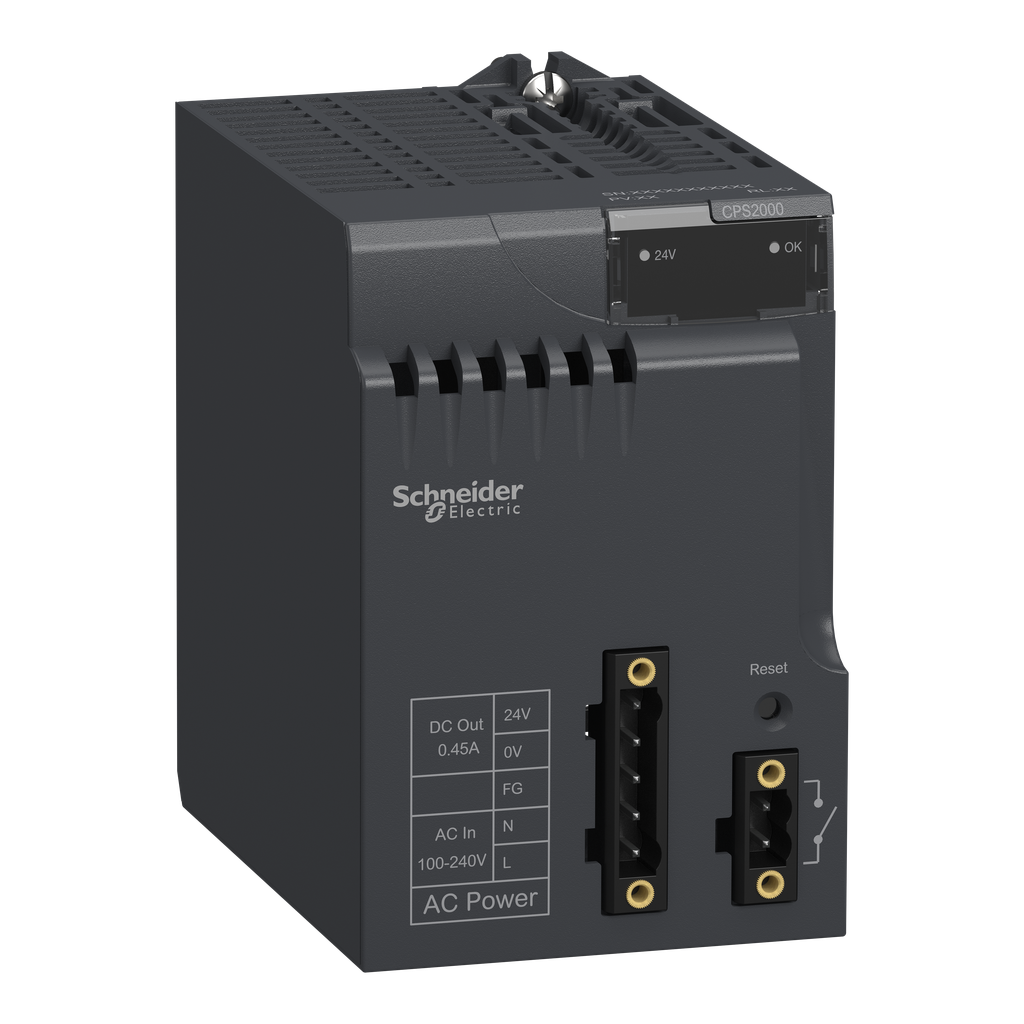

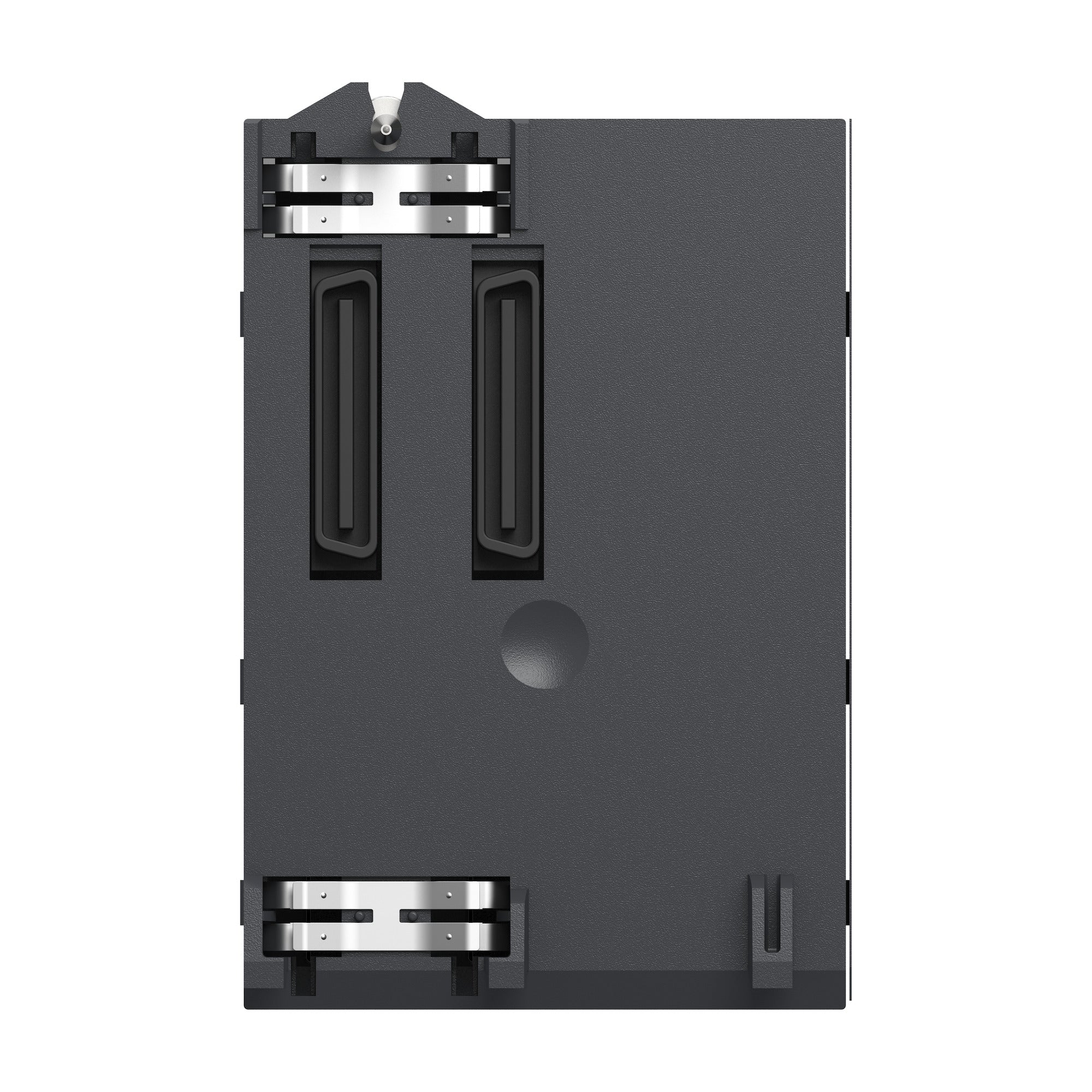

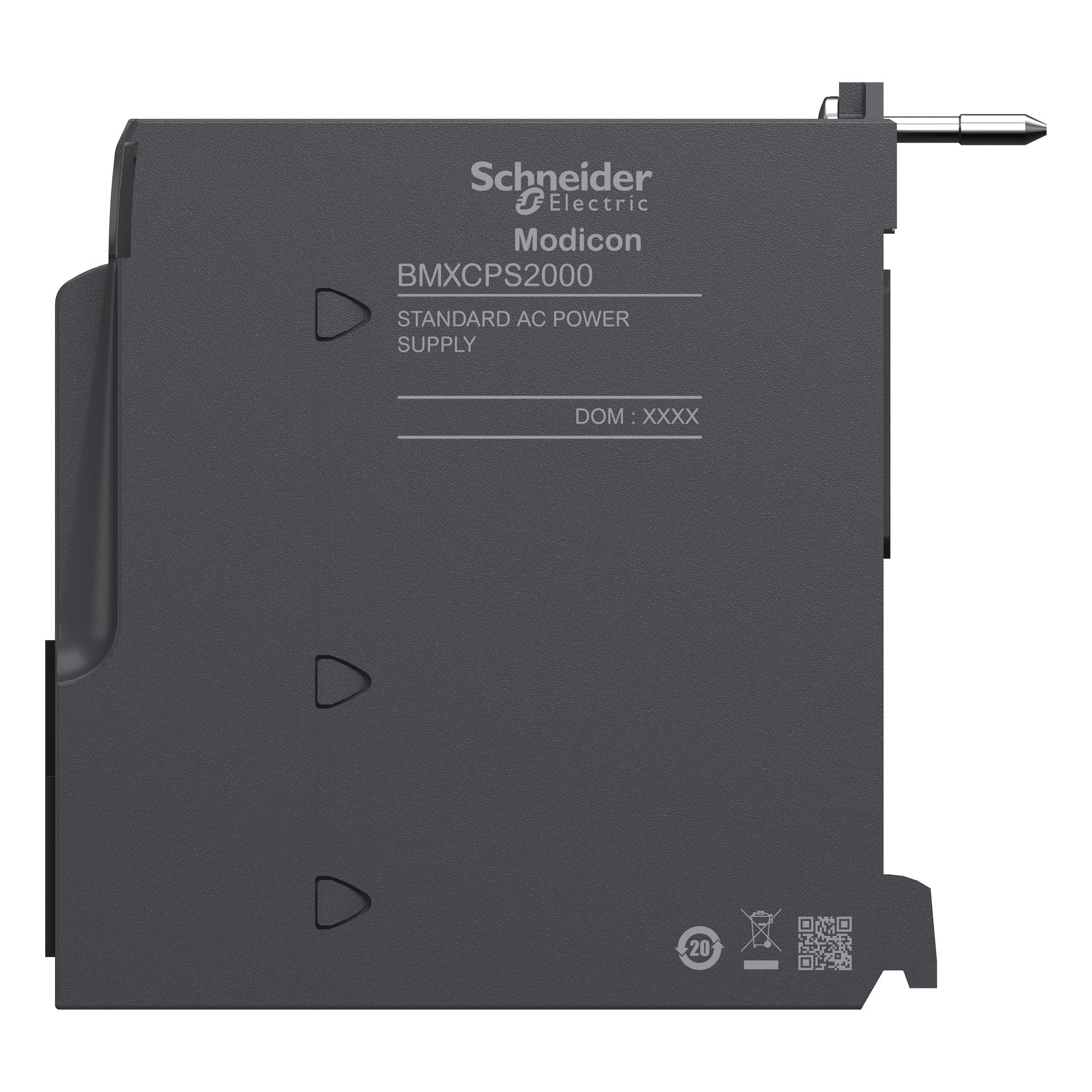

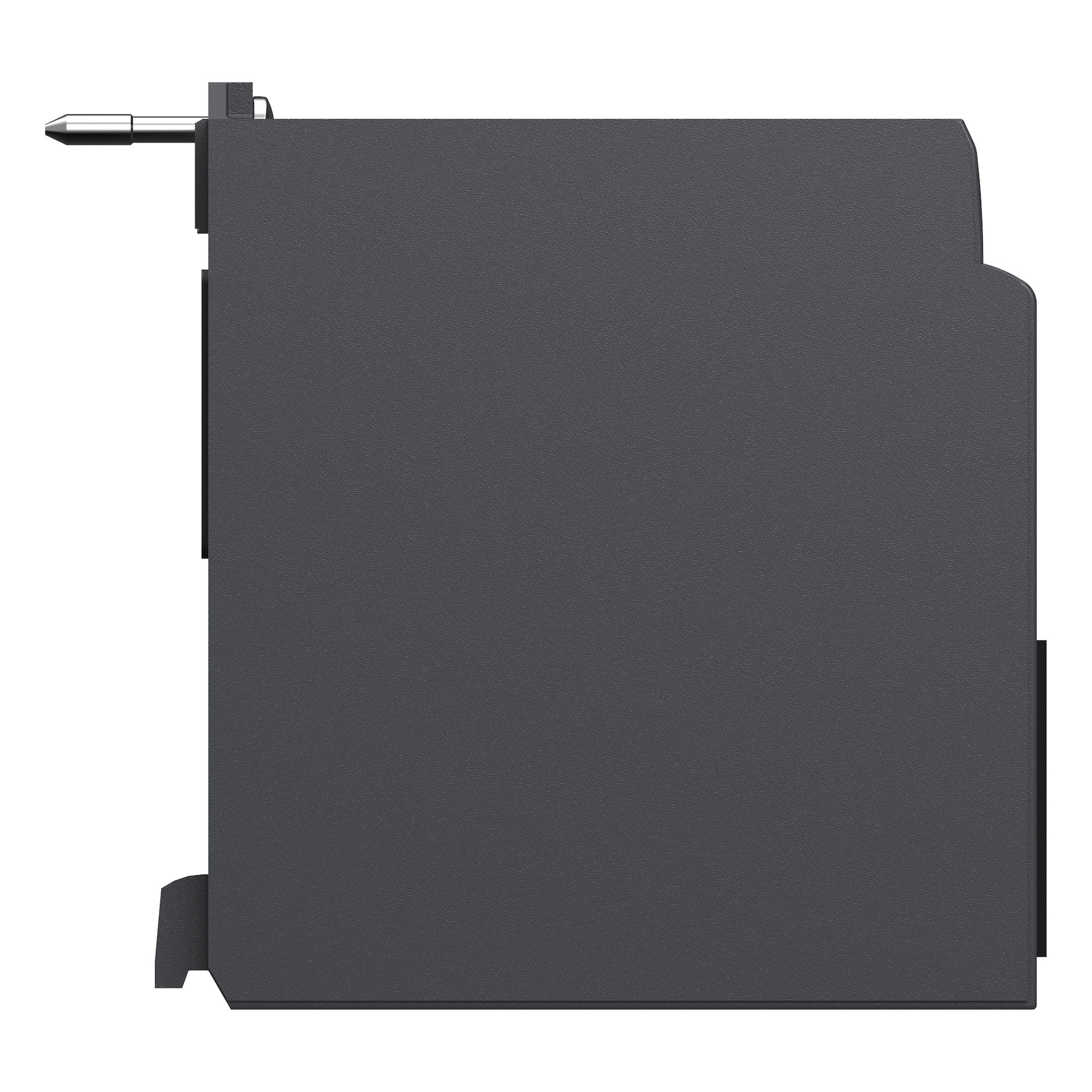

Schneider Electric BMXCPS2000 Power Supply Module 100 to 240 Volt 20W

Product Description

The Schneider Electric BMXCPS2000 is a power supply module suitable for various industrial applications, specifically designed for Modicon M580 and M340 Programmable Automation Controllers. This module operates on a primary voltage range of one hundred to two hundred forty volts AC and supports a secondary output of sixteen point eight watts at twenty-four volts DC. It delivers a current of two point five amps at three point three volts DC. The maximum power dissipation of this module is eight point five watts, ensuring efficient energy management in control systems.

This product includes a two-pin connector for alarm relay and a five-pin connector for line supply. It features protective earth for safe electrical connection with an ingress protection rating of IP20. Weighing three hundred grams, the BMXCPS2000 is robust yet compact, making it ideal for medium to large process applications. It meets multiple certification standards, including CE and UL, and complies with industry standards such as EN 61131-2 and EN 61000-6-4.

• Primary voltage: 100V to 240V AC
• Certifications: CE, UL, CSA
• Ingress protection: IP20

Product Highlights

Ideal for use in various PLC systems, this power supply module enhances operational efficiency and reduces downtime through compatibility with existing Modicon platforms.

Product Information

Standard Information

• Catalog Number: BMXCPS2000
• Manufacturer: Schneider Electric

Technical Specifications

• Input Voltage: 100-240V
• Wattage: 20W
• Amperage: 0.7A at 24V DC
• Weight: 0.3kg
• Operating Temperature: 0-60 degrees C
• Warranty: 18 months
• Country of Origin: France
