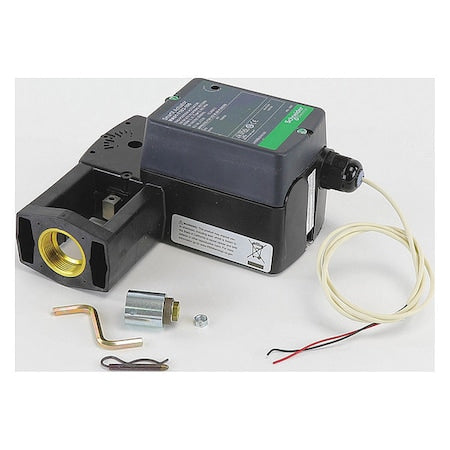

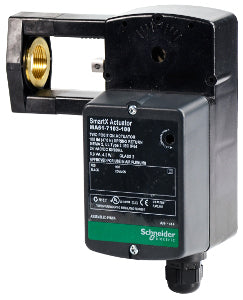

Schneider Electric MA51-7103-100 Electric Actuator 24V Spring Return

Product Description

The Schneider Electric MA51-7103-100 Electric Actuator is a robust device designed to control damper operations effectively. This actuator features a 2-position functionality with a spring return mechanism, ensuring reliable performance in HVAC systems.

• 24V operation suitable for various industrial applications
• Includes a manual override feature for enhanced control
• Robust design with 105 lbf force output for strong performance

Product Highlights

This actuator is part of Schneider Electric's reliable range of HVAC components, designed for easy integration and maintenance. It comes with a three feet plenum cable and is rated for 24 Vac/Vdc, fitting seamlessly into existing setups without additional modifications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: MA51-7103-100
• Model: Electric Actuator, 2-Position

Technical Specifications

• Operation Voltage: 24 Vac/Vdc
• Force Output: 105 lbf
• Cable Length: 3 ft plenum cable
• Dimensions: Length: 9.02 inches, Width: 4.8 inches, Height: 11.77 inches
• Weight: 3.96 lbs
