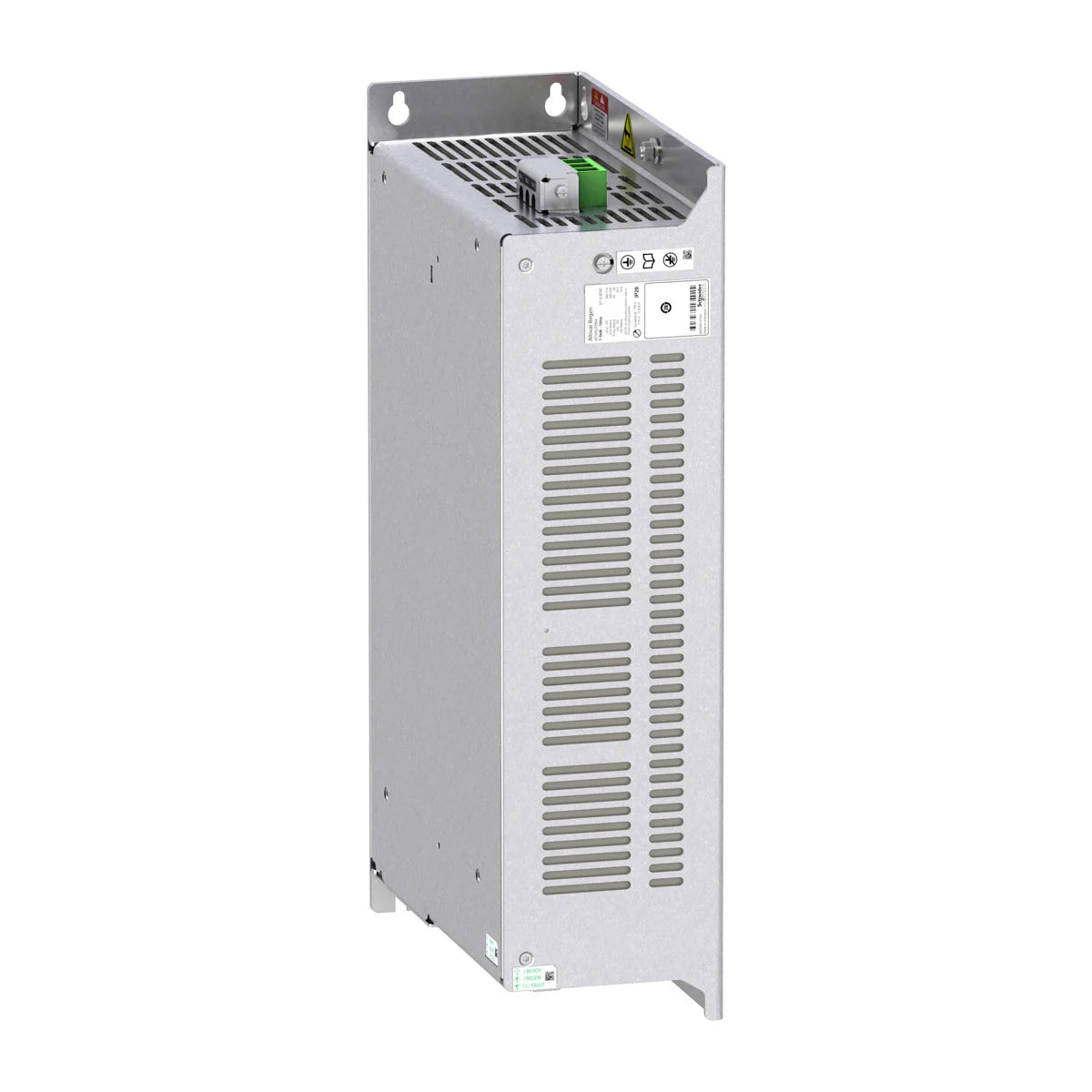

Schneider Electric ATVRU75N4 Regenerative Unit 7.5kW for Altivar variable speed drive

Product Description

The Schneider Electric ATVRU75N4 is a regenerative unit designed for the Altivar variable speed drive range. Operating at a rated power of 7.5kW, this unit efficiently regenerates energy back to the AC supply, helping to optimize energy consumption.

• Built-in EMC filter compliant with IEC 61800-3.
• Protection index of IP20 with a maximum operating temperature of 50 degrees Celsius.
• Compatible with ATV320, ATV340, and ATV900 drives.

Product Highlights

This unit is suitable for heavy braking applications including material handling and hoisting. It provides flexible installation options with vertical or horizontal orientation and is fully integrated into Schneider Electric's EcoStruxure Machine via DTM.

Product Information

Standard Information

• Catalog Number: ATVRU75N4
• Manufacturer: Schneider Electric

Technical Specifications

• Rated Power: 7.5kW
• Weight: 6 kg
• Dimensions: 80 mm (W) x 337 mm (H) x 175 mm (D)
• Country of Origin: United States
• Made in USA: Yes
• RoHS URL: RoHS Compliance
• GTIN: 03606481144218
