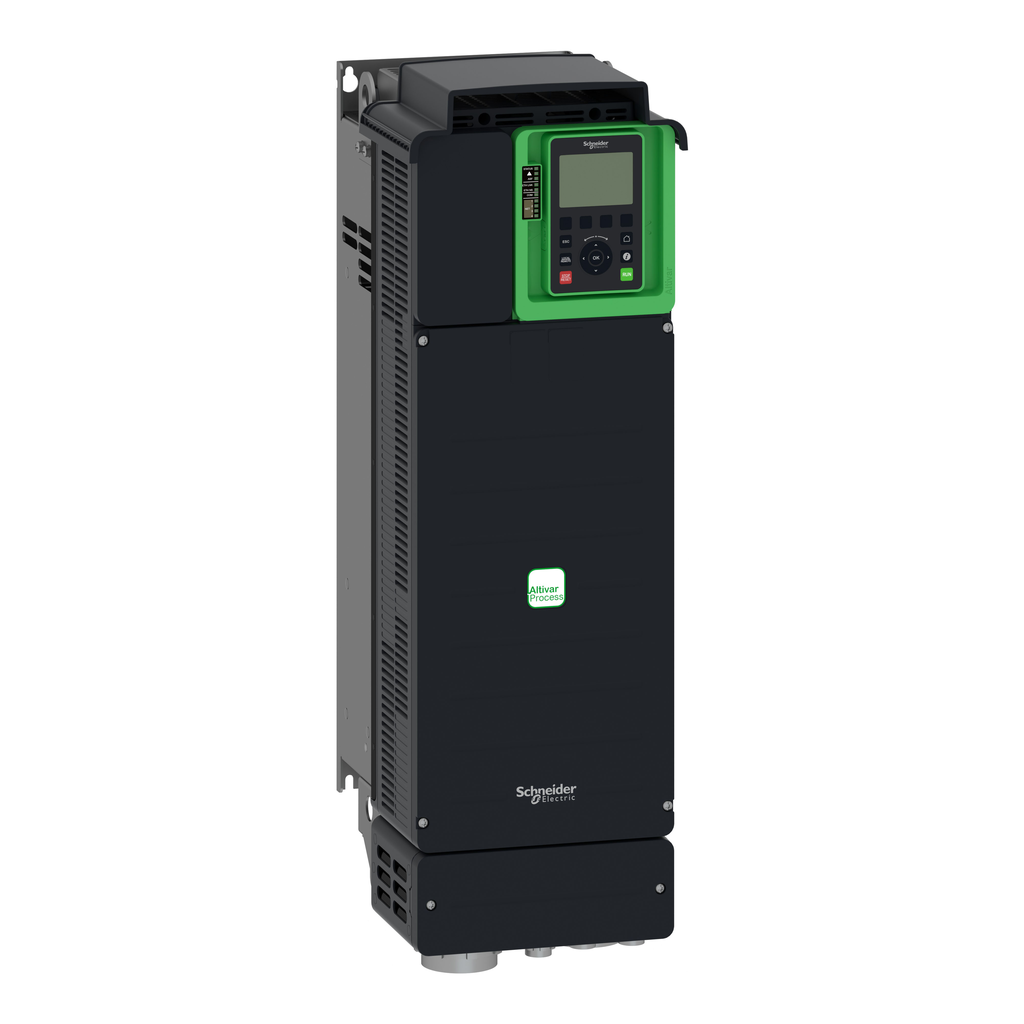

Schneider Electric ATV630D15M3 SQD Variable Speed Drive 15kW 20hp

Product Description

The Schneider Electric ATV630D15M3 is a variable speed drive suitable for feeding three-phase synchronous and asynchronous motors. It operates within a supply voltage ranging from two hundred volts to two hundred forty volts AC.

• Energy saving of up to thirty percent in standby mode
• Supports motors rated up to fifteen kilowatts or twenty horsepower
• Features three built-in RJ45 communication ports and additional Ethernet and serial connectivity

Product Highlights

This drive is designed for fluid management and energy efficiency, making it an ideal choice for various applications, including water and wastewater management, mining, and food and beverage processing.

Product Information

Standard Information

• Brand: Schneider Electric
• Catalog Number: ATV630D15M3

Technical Specifications

• Dimensions: 226 mm width x 673 mm height x 271 mm depth
• Weight: 13.6 kg
• Number of Phases: 3 Phase
• Operating Temperature: -15 to 50 degrees Celsius
• Mounting Type: Wall-Mounted
• Certifications: UL, CSA, ATEX Zone 2/22
• Country of Origin: India
• Applications: Suitable for synchronous and asynchronous motors in process and utilities
