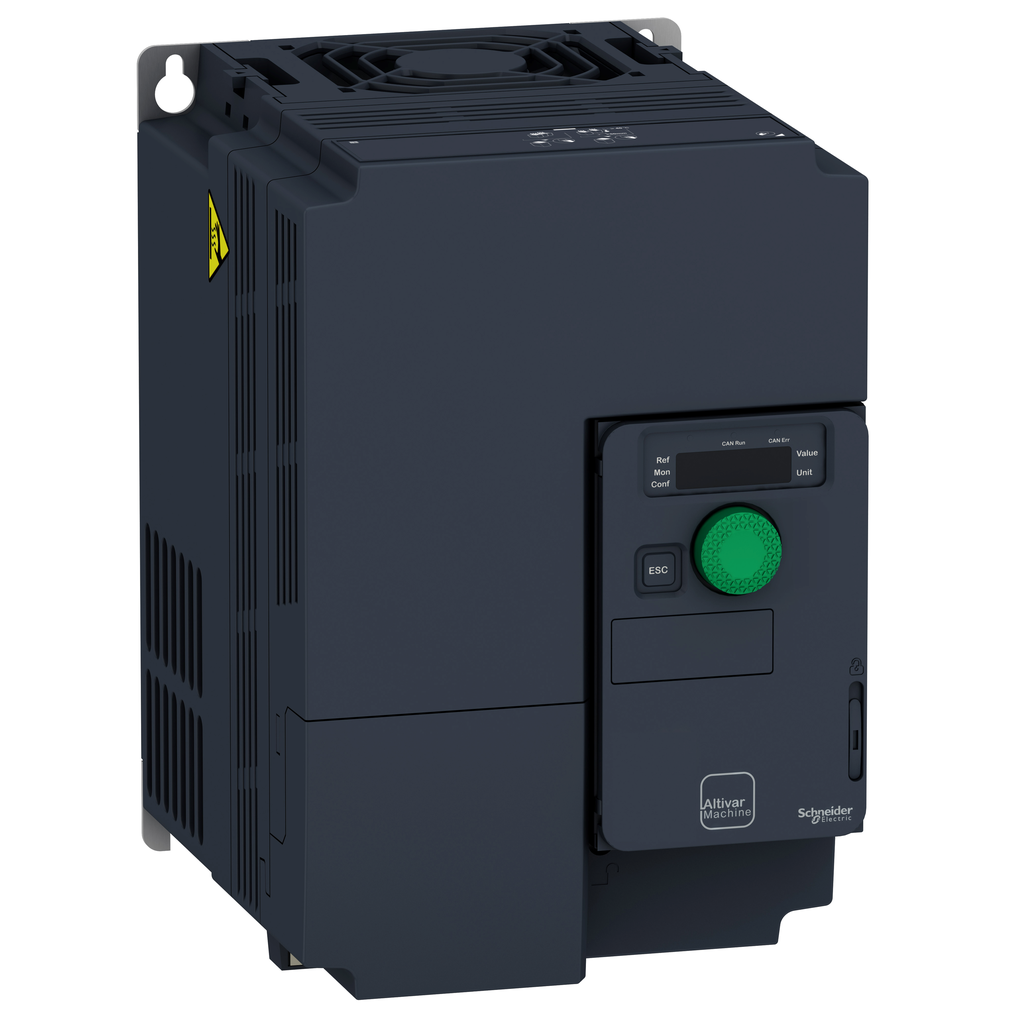

Schneider Electric ATV320U75N4C variable speed drive 7.5kW 380 to 500V 3 phases

Product Description

The Schneider Electric ATV320U75N4C variable speed drive is designed for Original Equipment Manufacturers (OEMs). It offers a compact design for vertical stacking within machine frames. This drive supports a power rating of up to 7.5 kW and operates efficiently at a voltage range of three hundred eighty to five hundred volts AC.

• Suitable for harsh environments with ambient temperatures up to sixty degrees Celsius without extra cooling.
• Functions include torque and speed accuracy, high dynamic performance, and extended frequency range for high-speed motors.
• Meets multiple standards including IEC, UL, and TUV for reliable performance.

Product Highlights

This drive enhances machine availability with robust design and integrated functions suitable for common applications including packaging and material handling.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• MPN: ATV320U75N4C
• Power Rating: 7.5 kW
• Rated Voltage: 380-500V AC
• Weight: 3.6 kg
• Dimensions: 150 mm width, 232 mm height, 178 mm depth
• Number of Phases: 3 Phase
• Mounting Type: Wall-Mounted
• Environmental Class: class 3C3, IEC 60721-3-3
