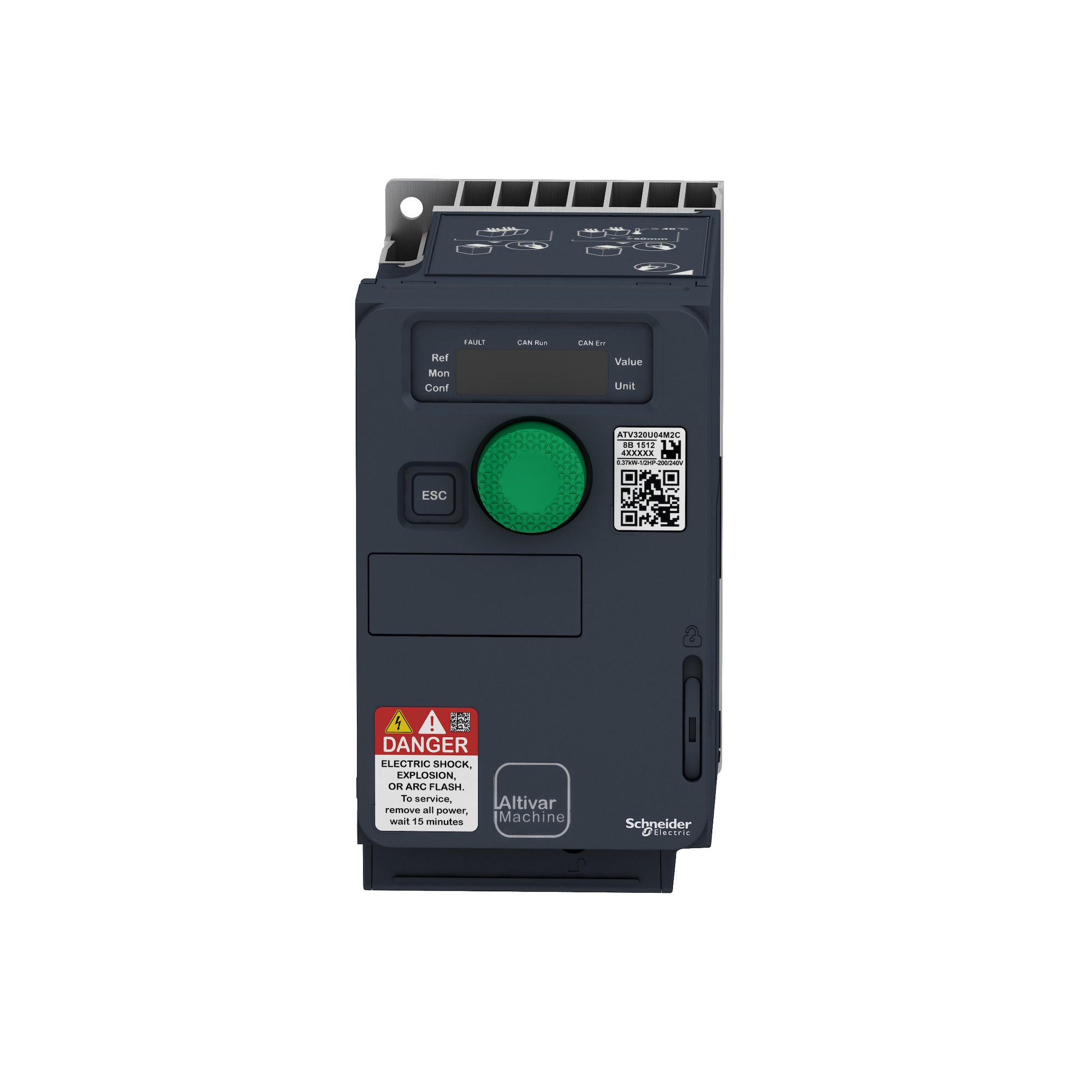

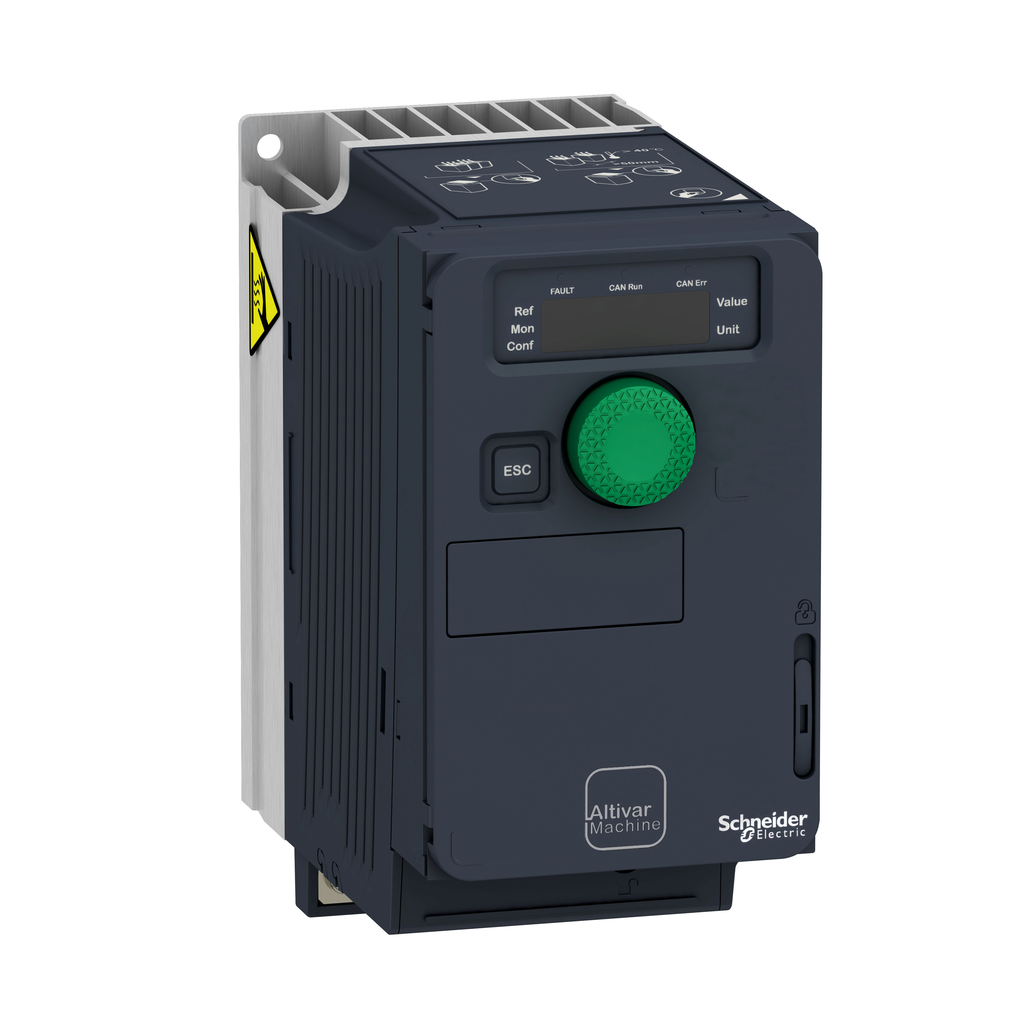

Schneider Electric ATV320U04M2C variable speed dri 0.37kW 200 to 240V AC

Product Description

The Schneider Electric ATV320U04M2C is a variable speed drive designed to control single-phase synchronous and asynchronous motors. This drive operates at a rated power of up to 0.37kW and handles voltages from 200V to 240V AC. Its space-efficient design permits vertical stacking within machine frames, optimizing space utilization.

• Robust construction suitable for harsh environments.
• High dynamic performance with vector control.
• Integrated safety functions configurable via SoMove software.

Product Highlights

The ATV320U04M2C supports applications in packaging, material handling, textile, and mechanical actuation. It is designed to maintain optimal performance in ambient temperatures reaching sixty degrees Celsius, eliminating the need for additional cooling. The drive includes torque and speed accuracy for low-speed operations and energy-saving capabilities for synchronous motors.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• MPN: ATV320U04M2C
• Type: Variable speed drive
• Power Rating: 0.37 kW
• Voltage Range: 200V to 240V AC
• Depth: 5.04 in
• Width: 2.83 in
• Height: 5.63 in
• Weight: 2.20 lb
• Mounting Type: Wall-Mounted
• Certifications: CE, UL, CSA, NOM, EAC, RCM
• Country of Origin: Indonesia
• GTIN: 03606480966521
