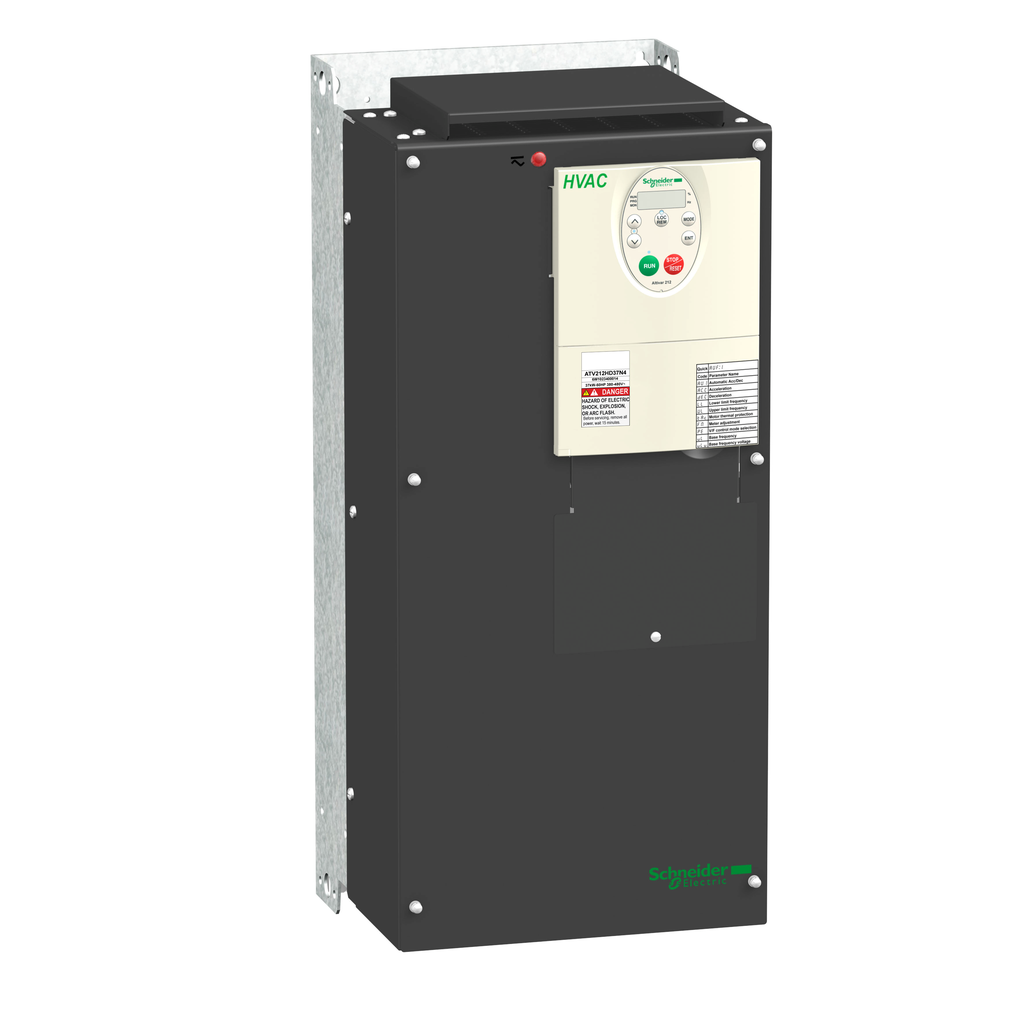

Schneider Electric ATV212HD45N4 variable speed dri 45kW 60hp 3 phases with EMC

Product Description

The Schneider Electric ATV212HD45N4 is a variable speed drive designed for 3-phase asynchronous motors. This unit features an IP21 protection index and a built-in EMC filter. It operates with a rated power of up to 45kW or 60hp, supporting voltages from 380V to 480V AC. This drive is engineered for energy efficiency, promising a reduction in energy use by up to 70% compared to traditional control systems.

The Altivar 212 incorporates technology that minimizes cable temperature rise, enabling immediate and disturbance-free operation, thus eliminating the need for additional current harmonics management options such as line or DC chokes. It has a weight of 38.1kg and dimensions of 240mm in width, 550mm in height, and 244mm in depth. Suitable for HVAC fluid management applications, it complies with international standards including IEC/EN 61800-5-1 and IEC/EN 61800-3 and comes with certifications such as CE, UL, CSA, C-Tick, and NOM.

This drive offers optional motor chokes to extend maximum cable lengths and reduce disturbances at motor terminals. It can be installed in a vertical position with four mounting holes and integrates seamlessly with building management systems via various communication protocols including Modbus, METASYS N2, APOGEE FLN P1, and BACnet.

• Rated Power: 45kW / 60hp
• Compatible Voltage: 380V to 480V AC
• Weight: 38.1kg

Product Highlights

The Altivar 212 is engineered for efficiency and reliability, making it ideal for HVAC systems.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Schneider Electric

Technical Specifications

• Catalog Number: ATV212HD45N4
• Output Voltage: Max output voltage equal to input voltage 3-phase
• Wattage: 45 kW
• Depth: 244 mm
• Width: 240 mm
• Height: 550 mm
• Number of Phases: 3 Phase
• Warranty Length: 18 months
