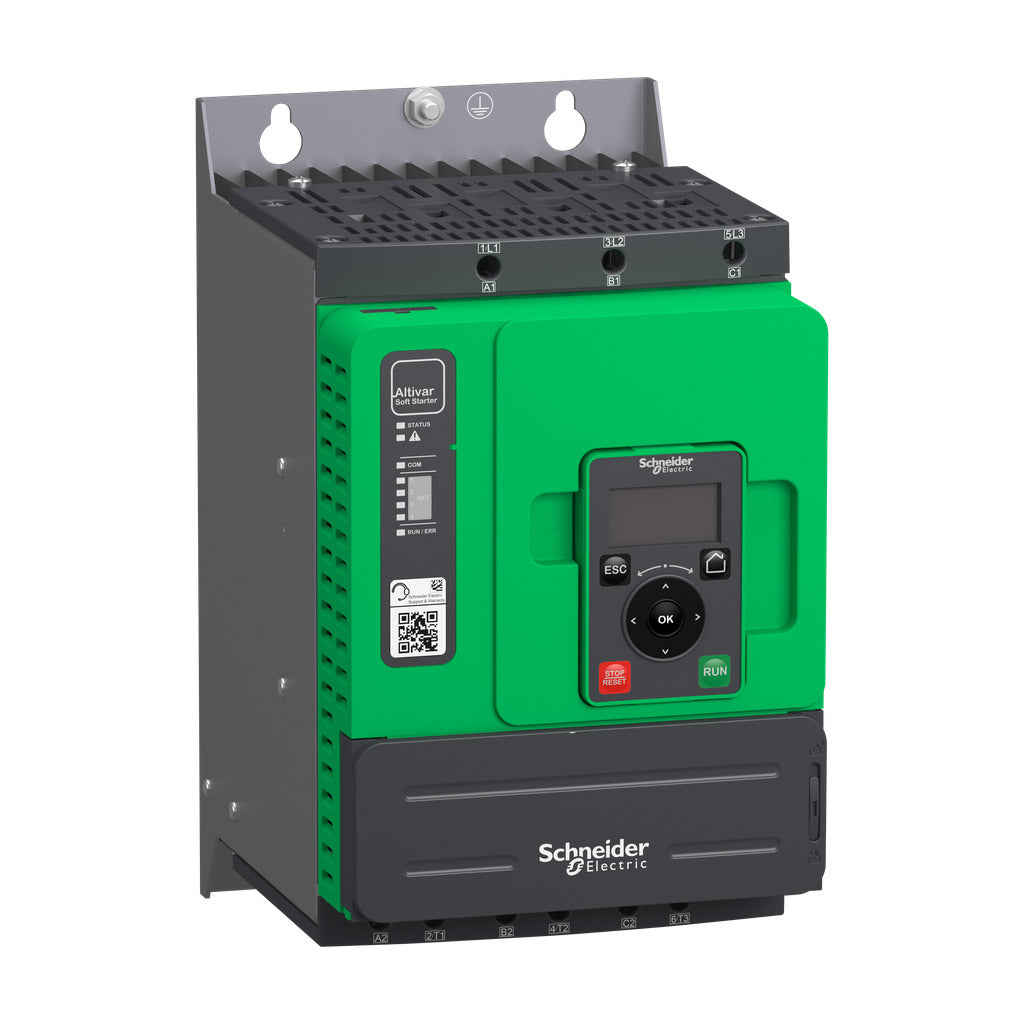

Schneider Electric ATS480D47Y Altivar Soft Starter 47 A 208...690V AC control supply 110...230V AC

Product Description

Schneider Electric ATS480D47Y is a soft starter unit designed for motors operating at 47 amps. This product operates effectively within a voltage range of 208 to 690 V AC with a control supply from 110 to 230 V AC. It is suitable for various industrial applications where control of motor start-up is needed to reduce inrush current and mechanical stress.

• Control supply voltage from 110V to 230V AC.
• Degree of protection rated at IP20.
• Wide operating temperature range from minus ten to forty degrees Celsius.

Product Highlights

This soft starter offers features for smooth acceleration and deceleration of motors, enhancing equipment lifespan and performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: Indonesia

Technical Specifications

• Catalog Number: ATS480D47Y
• Control Voltage Rating: 110...230 V AC 50/60 Hz - 15...10 %
• Degree of Protection: IP20
• Frequency Range: 50...60 Hz - 20...20 %
• Horsepower Ratings: 10.0 hp 208 V heavy duty; 15.0 hp 230 V normal duty; 9.0 hp 230 V heavy duty; 30.0 hp 460 V normal duty; 25.0 hp 460 V heavy duty; 40.0 hp 575 V normal duty; 30.0 hp 575 V heavy duty
• Voltage Rating: 208...690 V - 15...10 %
• Weight: 10.802650838 lbs
• Dimensions: Width 6.299 inches, Height 10.827 inches, Depth 7.992 inches
• Operating Temperature: -10...40 °C (14...104 °F) without derating; -10...50 °C (14...122 °F) without derating when bypassed
