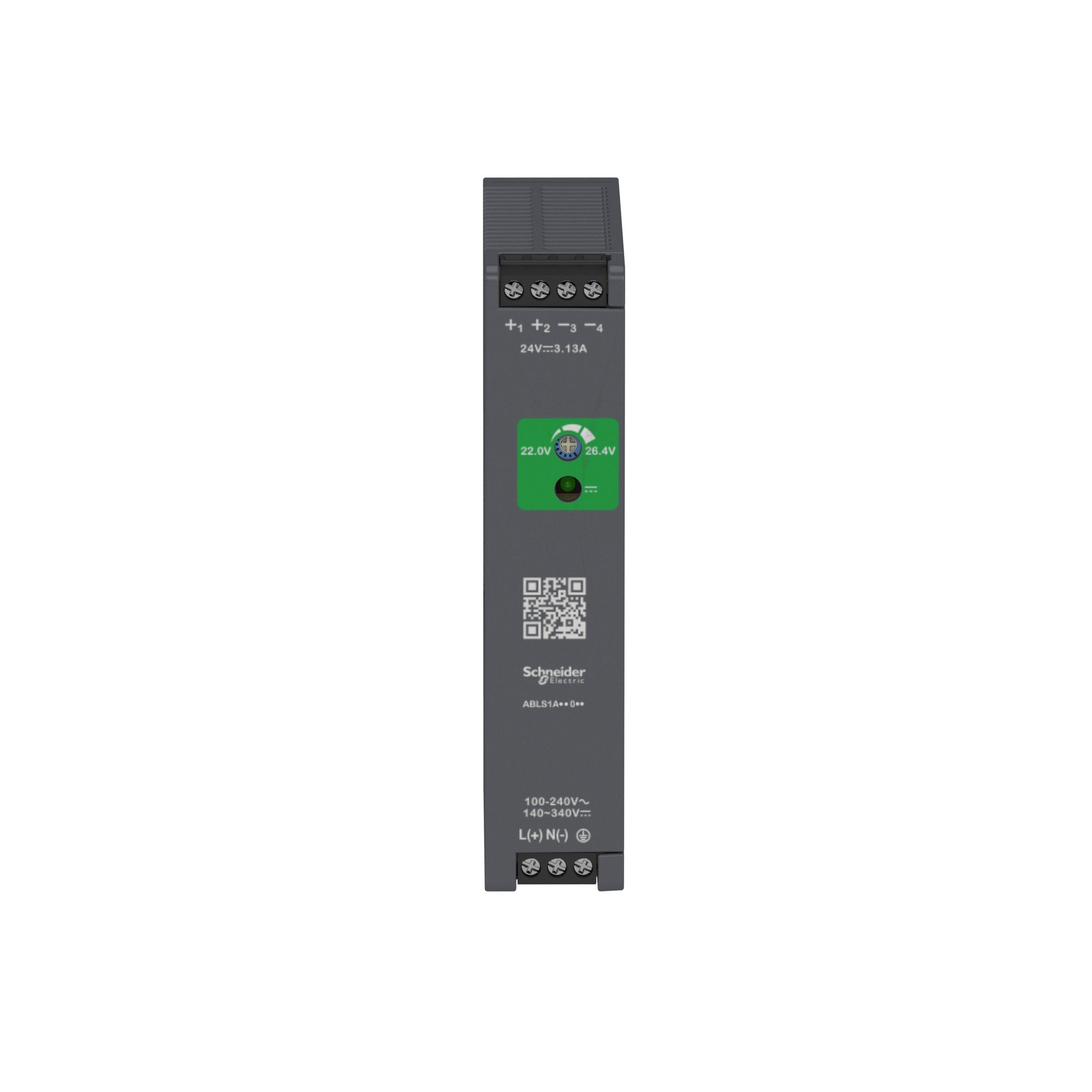

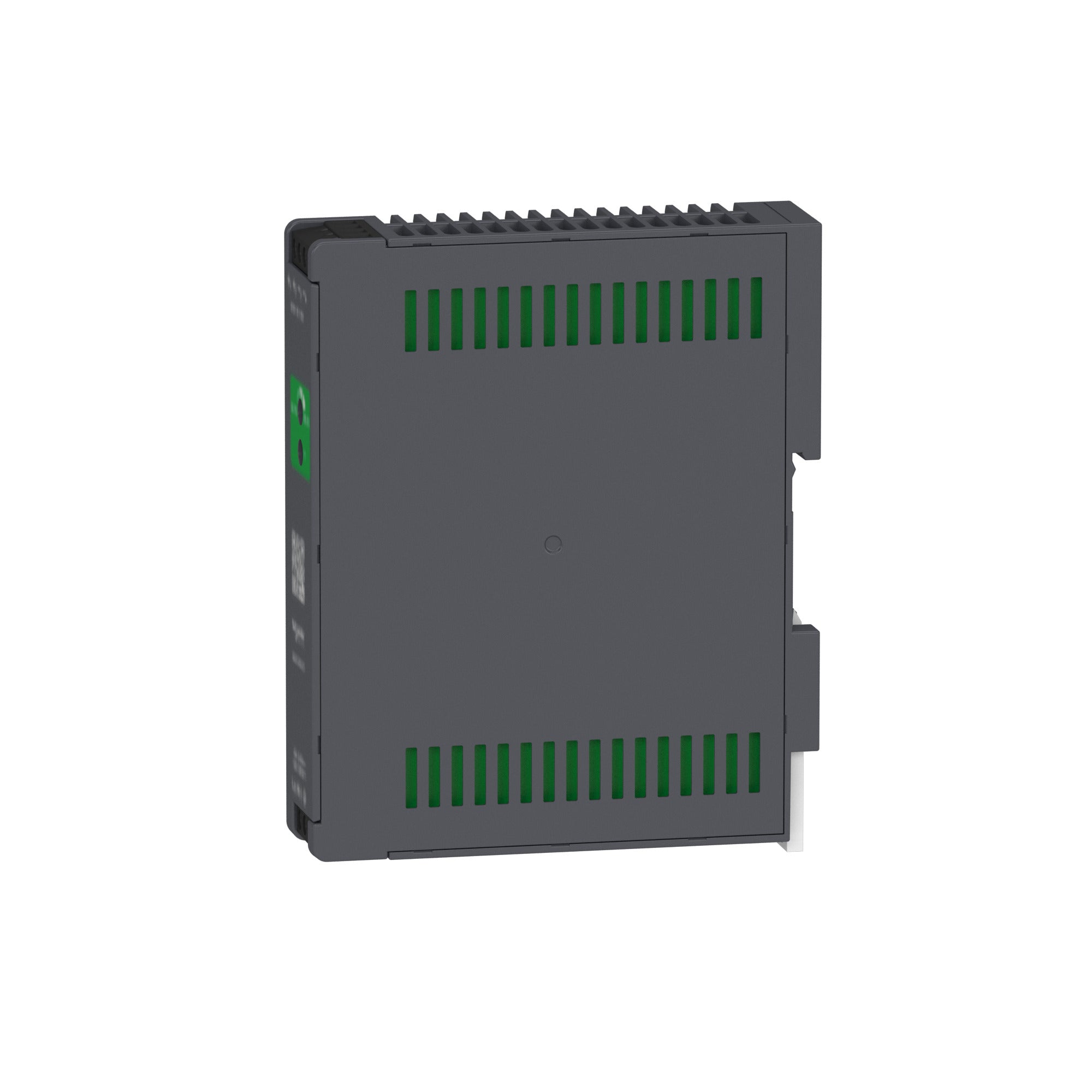

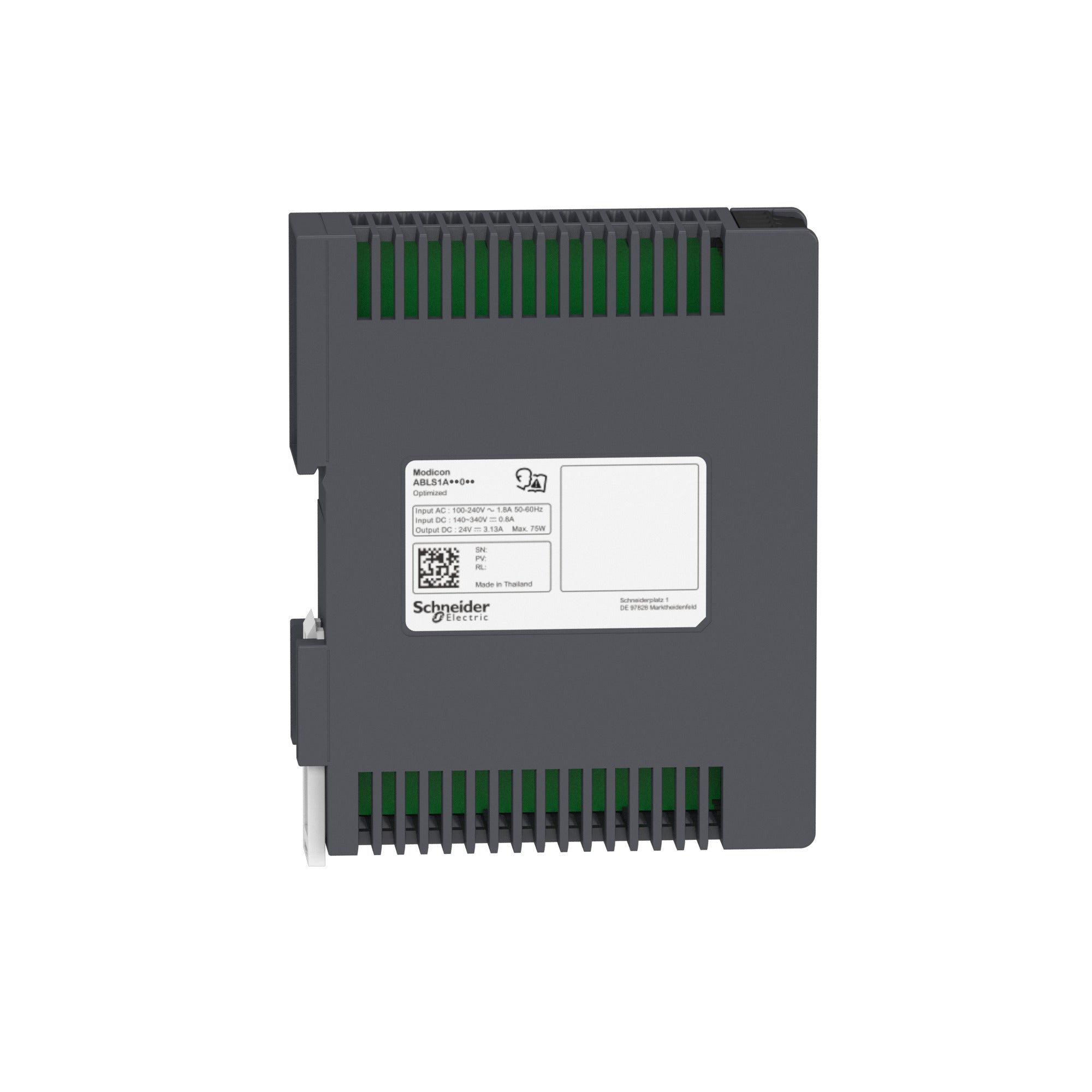

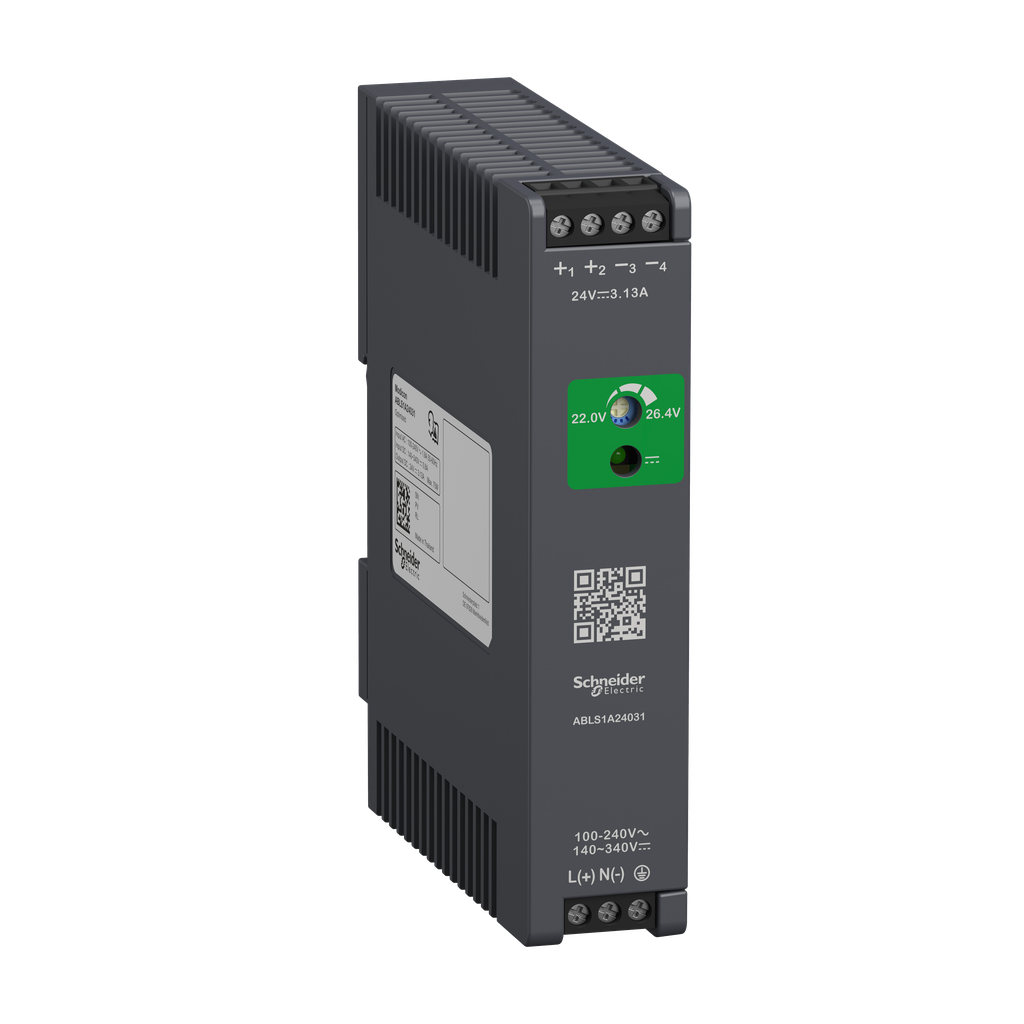

Schneider Electric ABLS1A24031 Regulated Power Supply 100 to 240V AC 24V 3.1A Single Phase

Product Description

The Schneider Electric ABLS1A24031 is a regulated switch mode power supply that provides direct current voltage. This device operates with an input voltage range of one hundred to two hundred forty volts AC and a DC input range of one hundred forty to three hundred forty volts. It outputs a current of three point thirteen amperes at twenty-four volts DC with a maximum power output of seventy-five watts.

This power supply is suitable for various applications, including industrial, commercial, and residential sectors like automation equipment, conveying systems, packaging, control devices, food and beverage processing, mining, oil and gas operations, and water management. It can be installed on omega rails or mounted securely with screws.

Protective features include overload and short-circuit protection with an automatic restart function once the issue is resolved. With dimensions of twenty-seven millimeters in width, one hundred twenty-three point six millimeters in height, and one hundred two millimeters in depth, it weighs zero point two two kilograms. The device meets multiple standards such as EN62368-1, UL62368-1, and ENIEC61010-1/2-201. It is CE certified and recognized by CUL, RCM, and CB scheme.

• Input Voltage: 100V to 240V AC
• Output Voltage: 24V DC
• Power Rating: 75W

Product Highlights

Designed for reliable power supply in industrial environments, featuring compact dimensions and robust protection systems.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: ABLS1A24031

Technical Specifications

• Input Voltage Range: 100V to 240V AC
• Output Voltage: 24V DC
• Output Current: 3.13A
• Rated Power: 75W
• Dimensions: 27mm (W) x 123.6mm (H) x 102mm (D)
• Weight: 0.22kg
• Efficiency: 88% at 230V AC
• Certification: CE, UL62368-1, CUL Recognized
