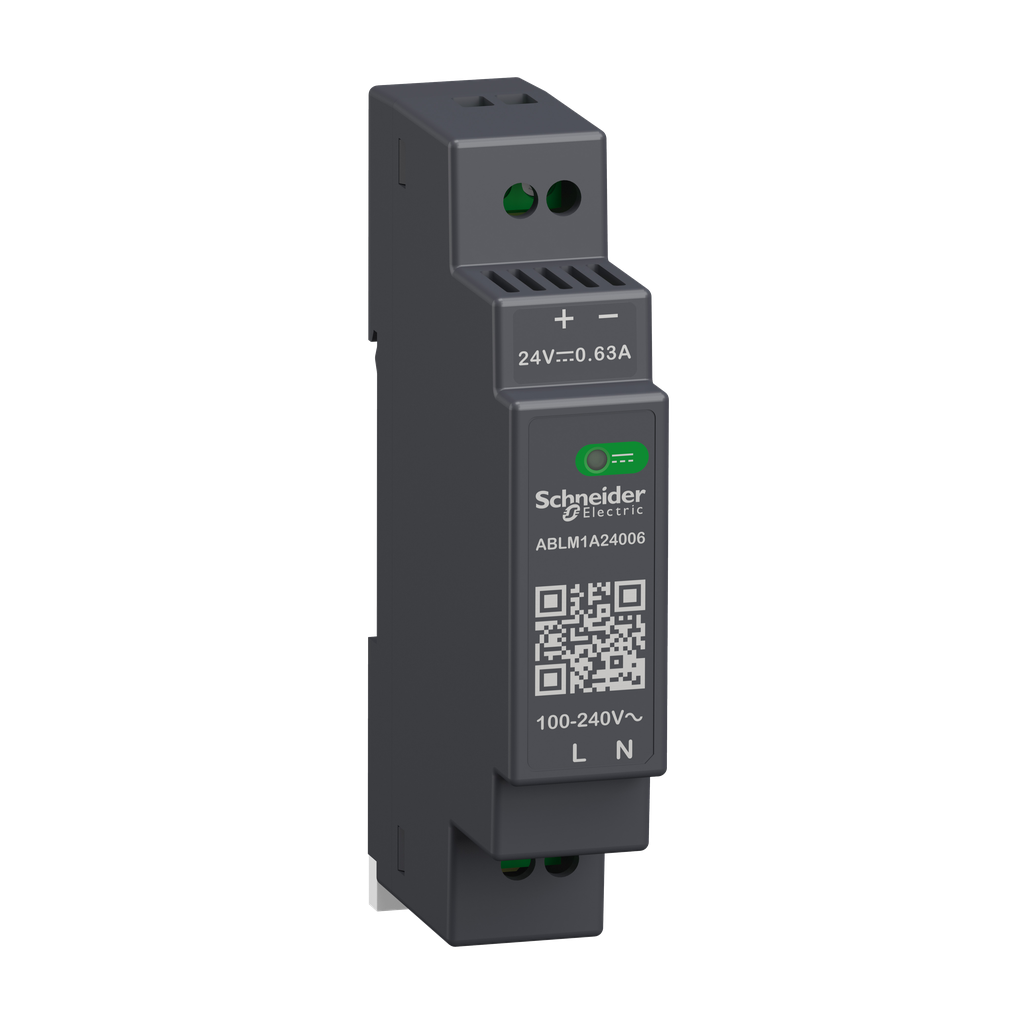

Schneider Electric ABLM1A24006 Regulated Power 100 to 240V AC 24V 0.625A

Product Description

Schneider Electric ABLM1A24006 is a regulated switch mode power supply designed to provide direct current voltage. It operates with an input range of one hundred to two hundred forty volts alternating current and an output of zero point six to five amps at twenty-four volts direct current. This power supply is suitable for automation equipment in various industries including food and beverage, packaging, and mining.

• Input voltage range: 100V to 240V AC
• Output current: 0.625A at 24V DC
• Power output: 15W

Product Highlights

It installs easily on omega rail or with screws and features overload protection with automatic restart. The unit is compact, measuring 18mm in width, 91mm in height, and 55.6mm in depth.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Square-D / Schneider

Technical Specifications

• MPN: ABLM1A24006
• Weight: 0.101 kg
• Width: 18 mm
• Height: 91 mm
• Depth: 55.6 mm
• Rated Power: 15 W
• Input Voltage: 100-240 V AC
• Output Voltage: 24 V
• Certifications: CB Scheme, CE, CUL Listed
