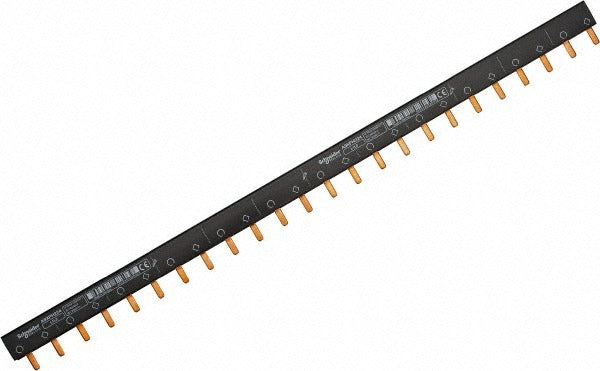

Schneider Electric A9XPH224 Combination Busbar 100A

Product Description

The SCHNEIDER ELECTRIC A9XPH224 is a combination busbar accessory rated for 100 amps and 415 volts AC, designed for use with C60 series circuit breakers. This busbar provides a factory-engineered method for linking multiple breakers to a common bus within a panel or distribution enclosure. It simplifies multi-pole wiring by eliminating individual conductor terminations between breakers. Licensed electricians and panel builders install this component during new construction, service upgrades, or panel retrofits. The A9XPH224 measures 16.9 inches in length, 1.2 inches wide, and 0.5 inches in height, making it suited for compact distribution assemblies.

This combination busbar is intended for use in electrical distribution panels and enclosures where C60 circuit breakers are installed. It is appropriate for both residential and light commercial applications requiring organized, code-compliant bus connections. The compact form factor allows it to fit within standard DIN-rail-mounted enclosures without requiring additional hardware modifications. It is typically installed by licensed electricians during panel assembly or breaker group additions.

Key Features

• Rated for 100 amps continuous current capacity
• 415 volts AC control voltage rating
• Engineered specifically for use with C60 circuit breakers
• Compact profile: 16.9 inches long, 1.2 inches wide, 0.5 inches tall
• Simplifies multi-breaker bus connections within panel assemblies
• Single-piece combination design reduces installation time and wiring complexity

Compatibility

Designed for use with C60 circuit breakers as specified by the manufacturer. Confirm enclosure and breaker configuration before installation to ensure proper fit within the distribution assembly.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local electrical codes. De-energize and lock out the panel completely before installing or removing any busbar or breaker accessories. Verify that the busbar rating matches the breaker ampacity and panel voltage before energizing. Do not modify or trim the busbar to fit non-compatible breaker configurations.
