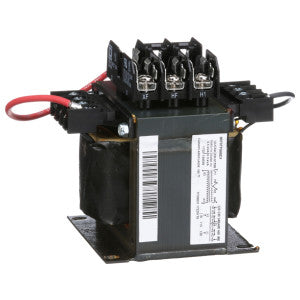

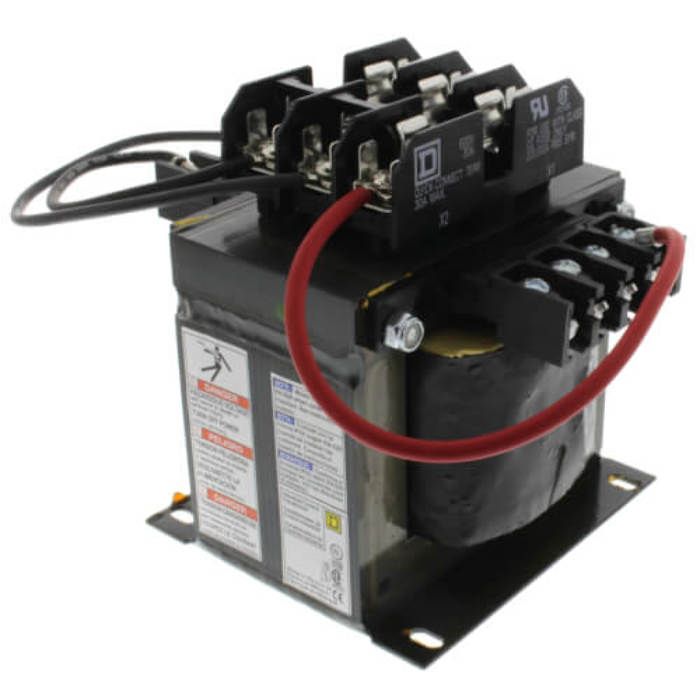

SCHNEIDER ELECTRIC 9070TF500D1 Industrial Control Transformer 500 VA

Product Description

The SCHNEIDER ELECTRIC 9070TF500D1 industrial control transformer is a reliable choice for applications requiring low impedance windings. It ensures strong voltage regulation and manages high inrush currents from contactors and solenoids effectively. This transformer features a power rating of 500 VA with primary voltage options of both two hundred forty and four hundred eighty volts, and a secondary voltage of one hundred twenty volts. It meets standards from UL, CSA, and CE.

• Low impedance windings for consistent voltage regulation
• Handles high inrush currents for inductive loads
• Pre-wired fuse blocks included for easy installation

Product Highlights

Designed for industrial control applications, this transformer provides essential support for various load types.

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• MPN: 9070TF500D1

Technical Specifications

• Primary Voltage: 240 x 480 V, 220 x 440 V, 110 V, 230 x 460 V, 115 V
• Secondary Voltage: 120 V, 115 V, 110 V
• VA Rating: 500 VA
• Phase: 1 phase
• Height: 5.13 inches
• Width: 4.5 inches
• Depth: 5.49 inches
• Temperature Rise: 115 degrees C
• Fuse Type: 0.41 x 1.50 inches CC top
