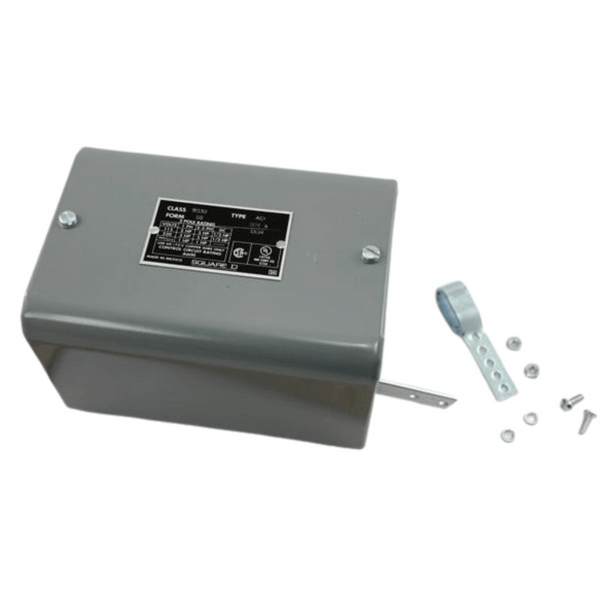

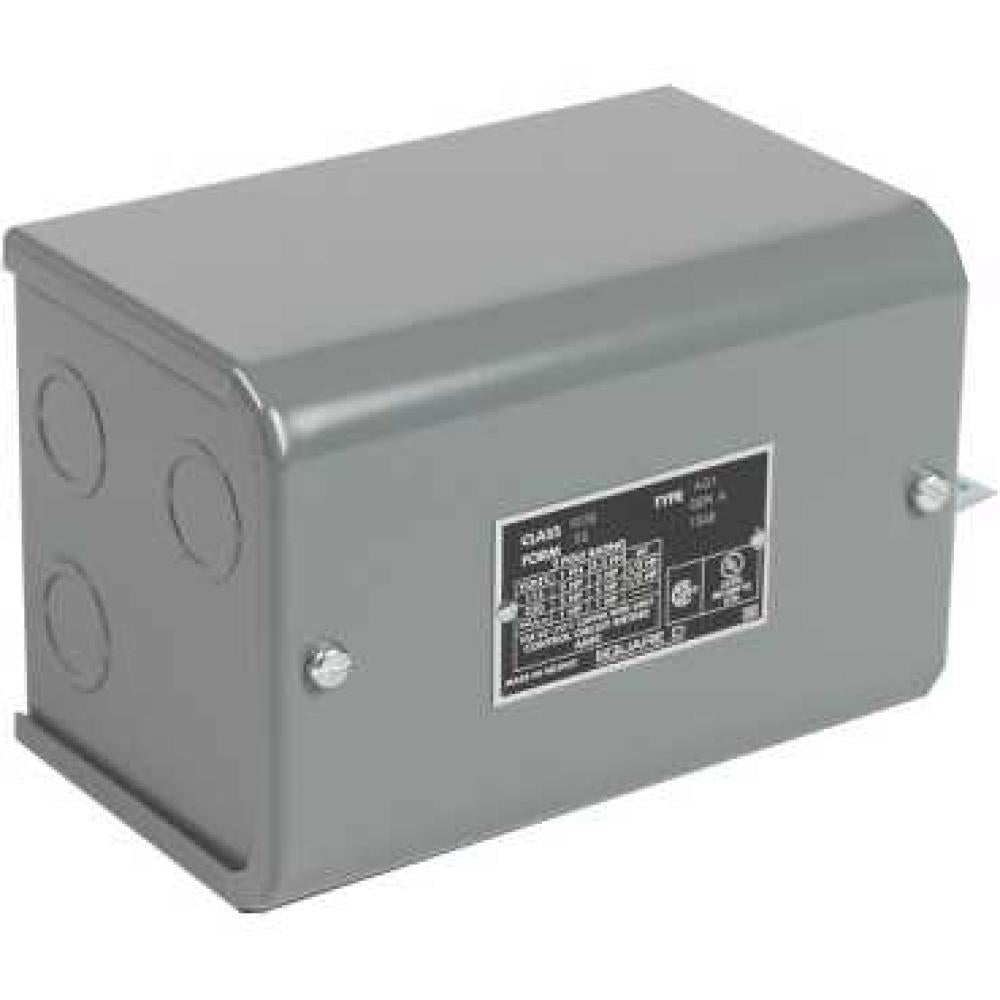

Schneider Electric 9038AG1S6 Float Switch, 575 VAC

Product Description

The Schneider Electric 9038AG1S6 is a float switch made for mechanically alternating the operation of two pumps or motors. This device uses a stainless steel float and rod along with a Nitrile (Buna-N) seal ring for reliability. Optimized for standard environment indoor applications, it features a screw clamp terminal for straightforward electrical connection. The switch operates as a Double Pole Single Throw (DPST) and includes flange mounting support.

• Stainless steel float and rod for durability
• NEMA 1 enclosure suitable for indoor use
• DPST switch function for efficient pump management

Product Highlights

This float switch is designed for reliable performance in liquid management tasks, making it ideal for various pumping applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9038AG1S6

Technical Specifications

• Enclosure Type: Standard environment enclosure indoor
• Switch Application: Standard
• Electrical Connection: Screw clamp terminal
• Material: Stainless steel float/rod, Nitrile (Buna-N) seal ring
• Mounting Support: Flange
• Number of Poles: 2
• Permissible Voltage: 575 V AC
• Switch Function: DPST
• NEMA Rating: 1
• Max Voltage: 600V
• Float Travel: Four and one-half inches
• Country: USA
• Weight: 5.0
• Type: Liquid
• Output Type: Switch
• Output Configuration: DPST
• Mounting Type: Screw Mount
• Material - Housing & Prism: Stainless Steel
• Operating Temperature: -30 °C to 105 °C
• Voltage Rating: 575VAC
• Switch Action: Close on Rise
• Max Pressure (PSI): 50
