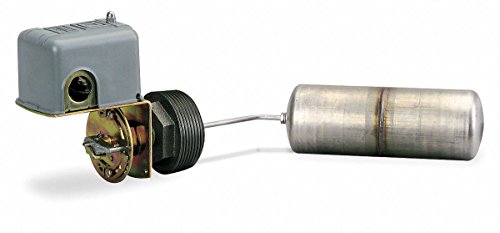

Schneider Electric 9037HG37 2Pole Float Switch Close On Rise 2-1/2 MNPT

Product Description

The Schneider Electric (Square D) 9037HG37 is a 2-pole float switch designed to control liquid levels by closing on rise. This switch directly operates small motor loads and is suitable for various industrial applications. It includes essential components like an external pointer, nameplate, rod, and float, making it easy to install and use.

• Control motor loads with reliable fluid level detection.
• Stainless steel float and stem for durability.
• Suitable for a range of operating temperatures from -22 degrees to 220 degrees Fahrenheit.

Product Highlights

The 9037HG37 float switch is perfect for applications where accurate measurement of liquid levels is essential. Its user-friendly design allows for quick maintenance and installation, making it a practical choice for industrial environments.

Product Information

Standard Information

• Manufacturer: Schneider Electric (Square D)
• MPN: 9037HG37

Technical Specifications

• Float Type: 2-Pole
• Switch Function: Close on Rise
• Tank Connection Size: 2-1/2 MNPT
• NEMA Rating: 1
• Operating Temperature Range: -22 Degrees to 220 Degrees Fahrenheit
• Max Pressure: 50 psi
• Overall Length: 16.06 inches
• Float Material: Stainless Steel
• Float Length: 7.13 inches
• Float Diameter: 2.58 inches
• Stem Material: Stainless Steel
• Stem Length: 5.07 inches
• Maximum Current: 600 A
• Maximum Voltage: 600 V
• Electrical Connections: Screw Clamp
• Includes: Rod and Float
