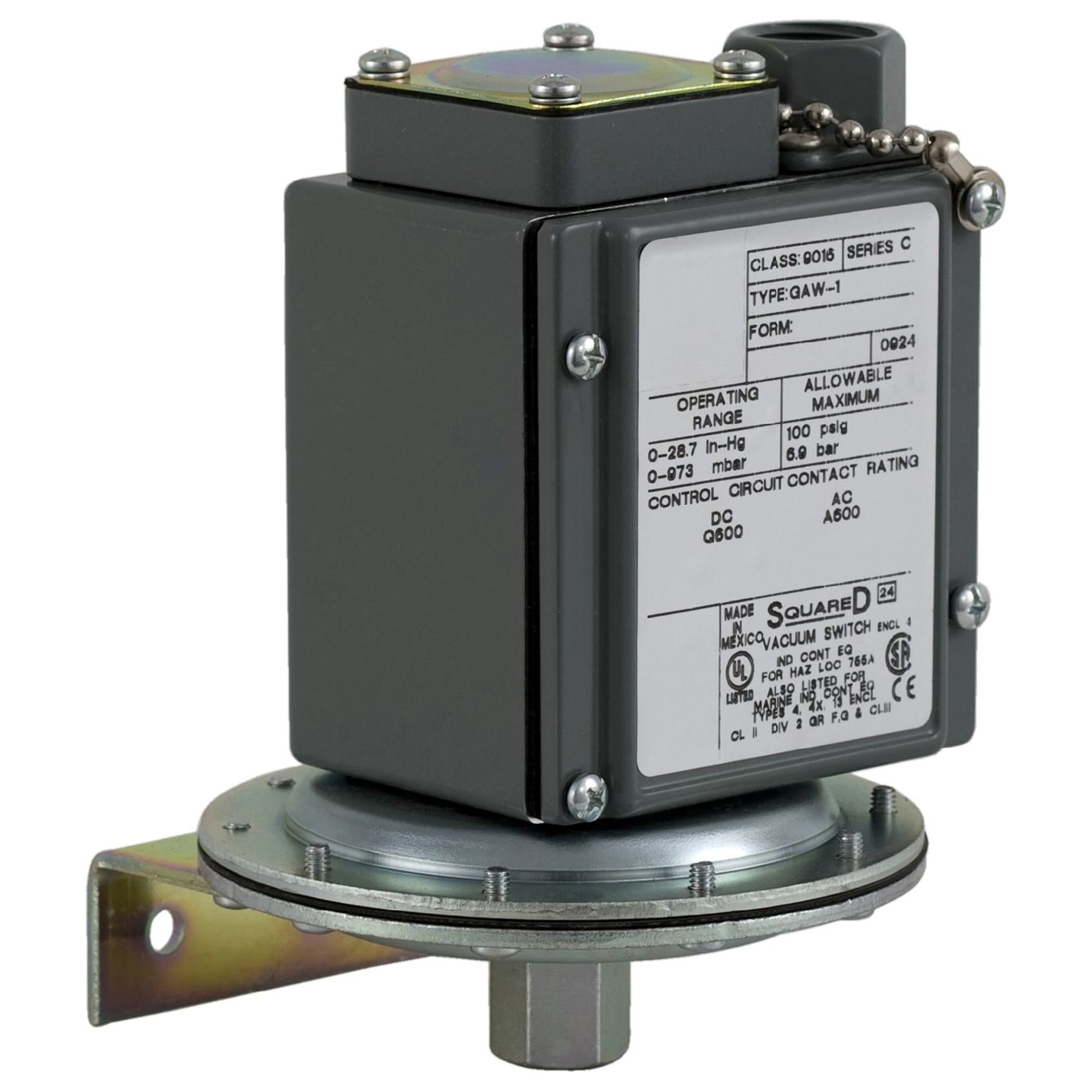

Schneider Electric 9016GAW1 Electromechanical Vacuum Switch

Product Description

The Schneider Electric 9016GAW1 is an electromechanical vacuum switch designed for precise control in various applications. This switch is effective for both air and hydraulic oil mediums and provides an adjustable differential to accommodate different operational needs.

• Adjustable differential suitable for air and hydraulic oil.
• SPDT configuration with one normally open and one normally closed contact.
• Constructed with a durable die-cast aluminum enclosure.

Product Highlights

The Schneider Electric 9016GAW1 is suitable for sensitive control applications in both indoor and outdoor settings. Its robust design and reliable output make it a dependable choice for HVAC and industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: USA

Technical Specifications

• Manufacturer: Telemecanique
• Series: 9016G
• Application: Sensitive control and indoor/outdoor applications
• Component Type: Electromechanical vacuum switch
• Maximum Pressure: 100 psi
• Sensing Range: 0 to 28.7 inches
• Differential: 0.8 to 9 inches Hg
• Output Signal Type: Differential
• Contact Configuration: SPDT
• Output Type: 1NO-1NC
• Voltage Rating: 480 VAC
• Amperage Rating: 10 A
• Enclosure Type: NEMA 4/4X/13
• Operating Temperature: -10 to 185 degrees F
• Temperature Range: -12 to 85 degrees C
• Housing Material: Die cast aluminum
• Connection Material: Zinc plated steel
• Diaphragm Material: Nitrile
• Connection Type: Screw clamp
• Standard/Approvals: ARRA compliant, Buy American Act compliant, RoHS compliant, CE marked, UL file No. E12158, CSA file No. LR25490
• Dimensions: 6.45 inches H x 4.56 inches W x 4.56 inches D
