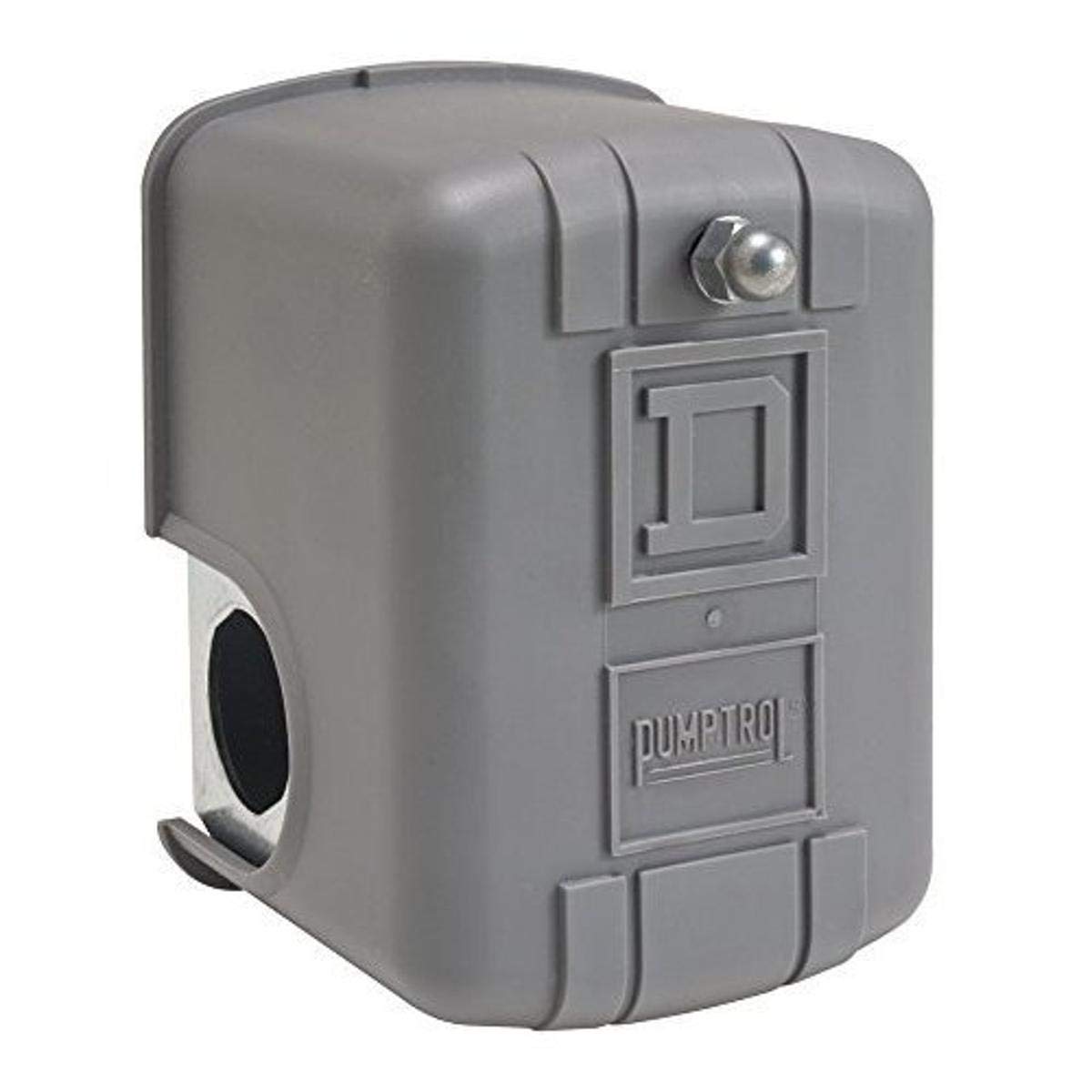

Schneider Electric 9013FHG2J27 Air-Compressor Pressure Switch 100 Psi Set Off 20 Psi Fixed Differential 1/4 Inch FNPS

Product Description

The Schneider Electric 9013FHG2J27 Air-Compressor Pressure Switch is engineered for reliable monitoring and control of air pressure levels in compressors. Equipped with a 100 psi set off and a 20 psi fixed differential, this switch ensures efficient operation.

• 100 psi set off for optimal pressure management.
• 20 psi fixed differential for stable operation.
• 1/4 inch FNPS connection for standard compatibility.

Product Highlights

This pressure switch features a robust design with a polypropylene cover and a Noryl thermoplastic resin cover, offering superior durability and resistance to various environmental conditions. The HP ratings and the electrical contact form DPST provide effective power management for single and three-phase motors.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: 9013FHG2J27

Technical Specifications

• Pressure Range: 20 to 100 psi
• Electrical Contact Form: DPST
• NEMA Rating: 1
• HP Ratings: 1 1/2 hp at 120V, 2 hp at 240V, 3 hp at three-phase 240V, 1 hp at three-phase 480V
• IP Rating: IP20
• Standards: ANSI /NSF Standard 61, CSA Certified
