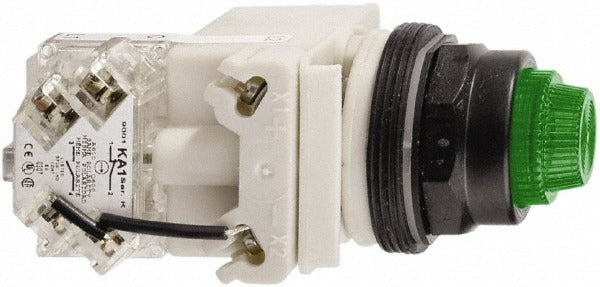

Schneider Electric 9001SKT38LGG31 Led Indicating Light

Product Description

The SCHNEIDER ELECTRIC 9001SKT38LGG31 is a 120-volt LED press-to-test indicating light designed for panel-mounted status indication in industrial and commercial control applications. It features a green octagonal lens and a screw clamp connector for secure, tool-assisted wiring. The LED lamp type delivers long service life and low power draw compared to incandescent pilots. Built with vibration resistance, this unit maintains reliable visual indication in environments subject to mechanical stress. Dimensions are 4.5 inches in length, 2.3 inches in width, and 2 inches in height. It weighs 0.27 pounds. Licensed electricians and panel builders typically install this unit in motor control centers, machine control panels, and distribution enclosures.

This indicating light is suited for use in residential, commercial, and light industrial control panel applications where a 120-volt pilot light is required. The press-to-test function allows technicians to verify lamp operation without energizing the circuit, a feature valued during commissioning and routine maintenance. The green lens communicates run, on, or normal system status at a glance. Its NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 ratings make it appropriate for both indoor and outdoor enclosures, including washdown and corrosion-resistant environments.

Key Features

• 120-volt AC rated LED lamp for long service life and low power consumption
• Press-to-test function allows lamp verification without circuit energization
• Green octagonal lens for clear run or normal status indication
• Screw clamp connector for secure, vibration-resistant wiring termination
• Vibration-resistant construction for use in demanding mechanical environments
• NEMA 1/2/3/3R/4/4X/12/13 rated for broad enclosure compatibility

Compatibility

Designed as an OEM-style replacement and standard pilot light for 120-volt industrial and commercial control panels requiring an octagonal-lens screw-clamp indicating light.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the panel before mounting or wiring this device. Use the screw clamp connector with appropriately sized conductors as specified by the panel design. Verify operation using the press-to-test function after wiring is complete and before returning the panel to service.
