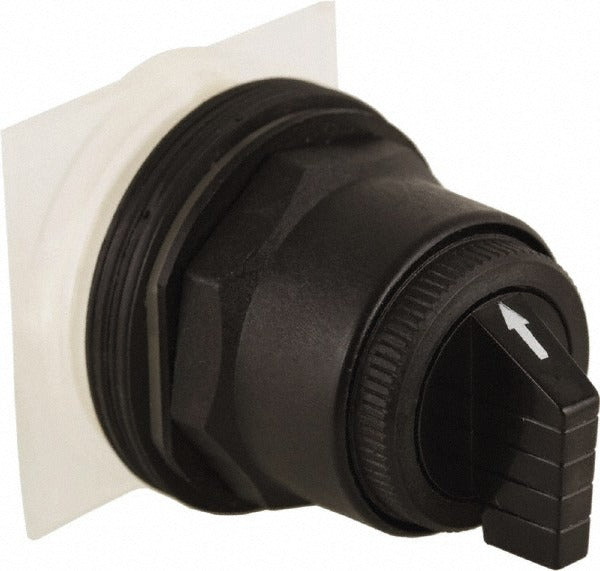

Schneider Electric 9001SKS53B Selector Switch 3 Position

Product Description

The SCHNEIDER ELECTRIC 9001SKS53B is a 3-position momentary selector switch operator designed for panel-mount control applications. This unit features a black knob push button operator with a plastic bezel and mounts through a 30 mm panel hole. It is the switch operator only and does not include contact blocks, making it suited for use as a replacement operator or as part of a modular control assembly. The 9001SKS53B carries NEMA ratings of 1, 2, 3, 3R, 4, 4X, 6, 12, and 13, covering a wide range of indoor and outdoor enclosure environments. Electricians and control panel builders install this type of device in industrial control panels, machine operator interfaces, and automation systems.

This selector switch operator is appropriate for both light industrial and heavy-duty control panel applications. Its momentary operation means the switch returns to center position when released, which is typical for jog, inch, or start-stop control circuits. The anti-corrosive, dust-resistant, oil-resistant, and weatherproof resistance ratings make it suitable for demanding environments where contamination or moisture exposure is a concern. It is a panel-mount device requiring a 30 mm mounting hole, consistent with standard 30 mm push button and selector switch product families.

Key Features

• 3-position momentary operation returns to center on release
• Black knob operator with black plastic bezel for standard panel aesthetics
• 30 mm panel mount hole diameter fits standard 30 mm control device cutouts
• NEMA ratings 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 for broad environmental coverage
• Anti-corrosive, dust-resistant, oil-resistant, and weatherproof construction
• Selector switch operator only — contact blocks ordered separately
• CE, CSA LR25490 Class 3211 03, and UL Listed (File E42259 CCN NKCR) certifications

Compatibility

Designed as an OEM-style replacement or modular operator component for 30 mm panel-mount selector switch assemblies. Contact blocks are not included and must be sourced separately to complete the assembly.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before installing or replacing any operator or contact block assembly. Confirm the panel cutout measures 30 mm before mounting. Do not exceed the NEMA rating of the enclosure when selecting this operator for outdoor or wash-down environments.
