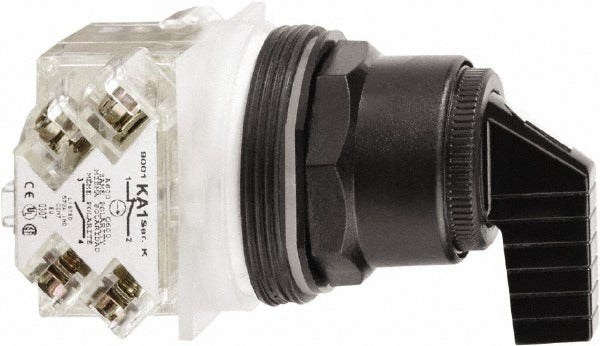

Schneider Electric 9001SKS43FB 3-position Selector Switch

Product Description

The SCHNEIDER ELECTRIC 9001SKS43FB is a 3-position maintained selector switch operator designed for industrial control panel applications. This operator-only unit features an octagonal plastic bezel and mounts through a 30mm panel cutout. It ships without contact blocks, allowing technicians to pair it with the appropriate contact block assemblies for the application. The maintained (MA) operation type means the handle stays in the selected position until manually moved. Rated IP66 and NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13, it is built to resist ingress from dust, oils, and water in demanding environments. The unit is also rated shock-resistant and vibration-resistant.

This selector switch operator is suited for use in industrial control panels, machine tool enclosures, and process control stations where three discrete operator-selectable positions are required. The maintained operation makes it appropriate for mode selection, circuit isolation, or multi-speed control functions. Licensed electricians and panel builders install this type of component during new panel construction or during replacement of worn or damaged operator heads. No contact blocks are included, so those must be sourced separately based on circuit requirements.

Key Features

• 3-position maintained operation — handle holds position until manually actuated
• 30mm panel cutout mount with octagonal plastic bezel
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosure ratings
• IP66 ingress protection — dust-tight and protected against powerful water jets
• Shock-resistant and vibration-resistant construction
• Non-illuminated operator — no lamp or LED assembly required
• Ships without contact blocks — zero contact blocks included

Compatibility

Designed as an OEM-style replacement or new-build operator head for 30mm industrial control station and panel-mount selector switch assemblies. Compatible contact blocks must be sourced separately to complete the switching circuit.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and the panel manufacturer guidelines. De-energize and lock out the control panel before removing or installing any operator or contact block components. Ensure the panel cutout measures 30mm before mounting. Contact blocks are not included and must be installed separately before the circuit is energized.
