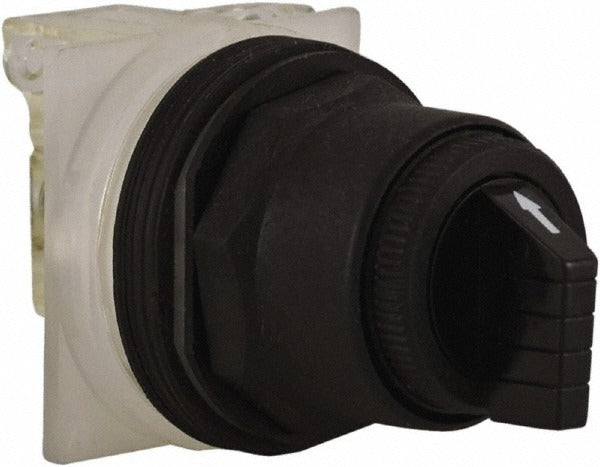

Schneider Electric 9001SKS43BH1 Selector Switch 3-position

Product Description

The SCHNEIDER ELECTRIC 9001SKS43BH1 is a 3-position maintained selector switch rated for 600V AC at 10 amps, designed for industrial and commercial control panel applications. It features a black knob-style push button operator with a plastic bezel and panel-mount installation. The maintained action holds its selected position until manually moved, making it suitable for mode selection, motor direction control, and on/off sequencing tasks. Licensed electricians and control panel integrators are the primary installers of this device. It meets multiple international standards including UL, CSA, and CE, and carries a NEMA 4X rating for use in demanding environments.

This selector switch is suited for use in residential, commercial, and light industrial control panels where a durable, multi-position operator is required. Its NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 ratings make it appropriate for both indoor dry locations and outdoor or washdown environments. The 1.18-inch panel cutout diameter follows the standard 30mm mounting format common across industrial control devices. Anti-corrosive, dust-resistant, oil-resistant, and weatherproof resistance features extend service life in harsh installation sites.

Key Features

• 3-position maintained operation holds selected position without spring return
• Rated 600V AC, 10 amps — meets Utilization Category AC-15 and DC-13 requirements
• Standard 30mm (1.18-inch) panel cutout for wide panel compatibility
• NEMA 4X rated — anti-corrosive, dust-resistant, oil-resistant, and weatherproof
• Screw terminal connection for secure, code-compliant wiring
• Certified to UL File E42259, CSA LR24590 Class 3211 03, and CE standards

Compatibility

Designed as an OEM-style replacement or new-installation selector switch for standard 30mm panel cutout control enclosures rated NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, or 13.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements. De-energize the control panel and verify zero voltage with a meter before beginning any wiring work. Use appropriately rated conductors terminated at the screw terminals per the panel schematic. Confirm the panel enclosure NEMA rating is compatible with the installation environment before mounting.
