Schneider Electric 9001SKS43 3-position Selector Switch

Product Description

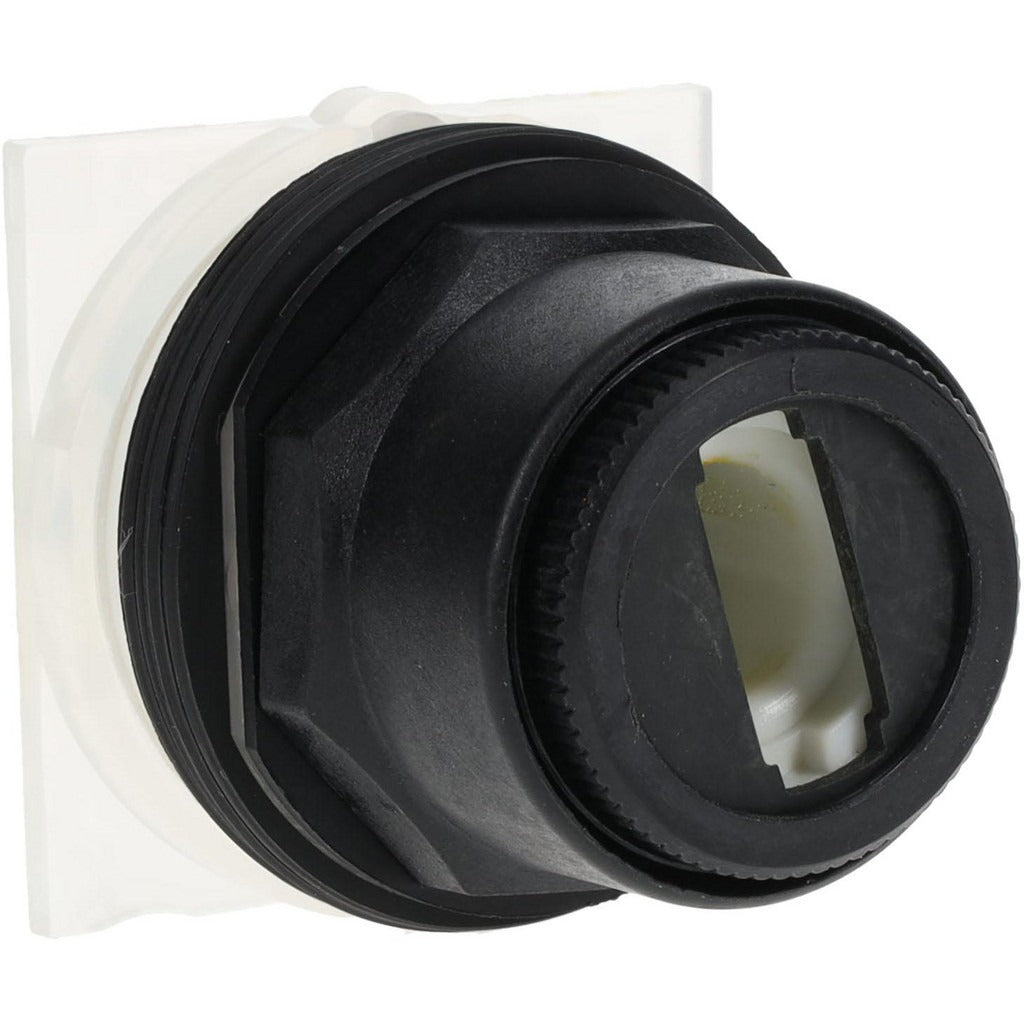

The SCHNEIDER ELECTRIC 9001SKS43 is a 3-position maintained selector switch operator designed for panel-mount industrial control applications. This unit uses a knob-style operator and holds its selected position after actuation — no spring return. The bezel is black plastic with a 30-millimeter mounting hole diameter, making it compatible with standard 30mm cutout panels. It carries CE, CSA, and UL listings and is rated for NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosures, covering both indoor and outdoor environments. Licensed electricians and industrial controls technicians are the primary installers of this component.

This selector switch operator is suited for residential, commercial, and light industrial control panels where a durable, multi-position maintained switch is required. Typical applications include motor control centers, machine control panels, and HVAC equipment disconnect or mode-selection circuits. The oil-resistant, dust-resistant, anti-corrosive, and weatherproof construction makes it appropriate for harsh or wet-location enclosures rated NEMA 4 and 4X. Note that this listing covers the switch operator only — contact blocks are sold separately and are not included.

Key Features

• 3-position maintained operation — holds selected position without spring return
• Knob-style operator with black plastic bezel for standard 30mm panel cutouts
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosure ratings
• Resistance to corrosion, dust, oil, and weather for demanding environments
• UL Listed (File E42259, CCN NKCR), CSA LR25490 Class 3211 03, and CE certified
• Zero contact blocks included — operator only, pairs with separately purchased contact blocks

Compatibility

Designed as an OEM-style panel-mount selector switch operator for standard 30-millimeter industrial control panel cutouts. No specific system or model compatibility data was provided in the product input.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before installing or servicing this component. Verify enclosure NEMA rating matches the installation environment before mounting. Contact blocks must be sourced and installed separately to complete a functional switch assembly.
