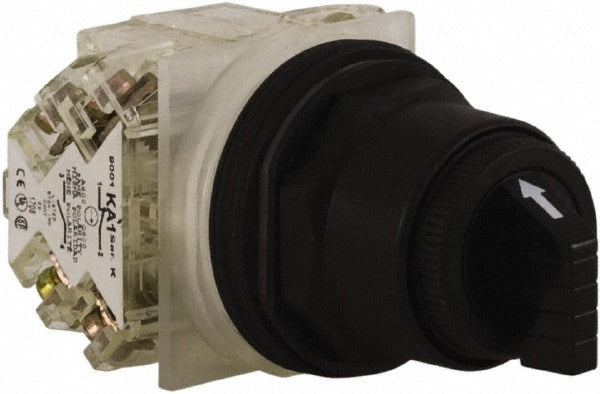

Schneider Electric 9001SKS42BH2 Selector Switch 3 Pos 600V

Product Description

The SCHNEIDER ELECTRIC 9001SKS42BH2 is a three-position, maintained-action selector switch rated for 600 volts AC and 10 amps. It uses a black knob-style operator and mounts to a panel through a 1.18-inch (30 mm) hole. The screw-terminal design allows for secure field wiring, and the plastic bezel is built to resist corrosion, dust, oil, and weather. This switch is intended for industrial and commercial control panel applications and is typically installed by licensed electricians or qualified controls technicians.

This selector switch is suited for use in industrial control panels, machine tool enclosures, and commercial electrical equipment where a durable, multi-position maintained switch is required. Its broad NEMA enclosure compatibility — covering NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 — makes it appropriate for both indoor and outdoor installations, including wet or wash-down environments. The maintained operation type means the switch holds its selected position without operator input, which is standard practice in motor control and selector logic circuits.

Key Features

• Three-position maintained (MA) operation — holds position without continuous operator input
• Rated 600 volts AC and 10 amps for use in industrial control circuits
• Black knob operator with black plastic bezel; panel-mount through 1.18-inch (30 mm) knockout
• Screw-terminal connections for reliable field wiring
• Rated NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 — suitable for indoor, outdoor, and wet locations
• Resistance features include anti-corrosive, dust-resistant, oil-resistant, and weather-proof construction
• Certified to CE, CSA LR24590 Class 3211 03, and UL Listed File E42259 CCN NKCR; meets Utilization Category AC-15 and DC-13

Compatibility

Designed as an OEM-style replacement or new-installation selector switch for industrial and commercial control panels requiring a 30 mm panel-mount, three-position maintained knob switch rated at 600 volts AC.

Installation Notes

Installation should be performed by a licensed electrician or qualified controls technician in accordance with NEC requirements and applicable local codes. De-energize and lock out the control panel before beginning installation or wiring. Ensure the panel knockout matches the 1.18-inch (30 mm) hole diameter before mounting. Verify that the circuit load does not exceed the 10 amp and 600 volt AC ratings of the switch.
