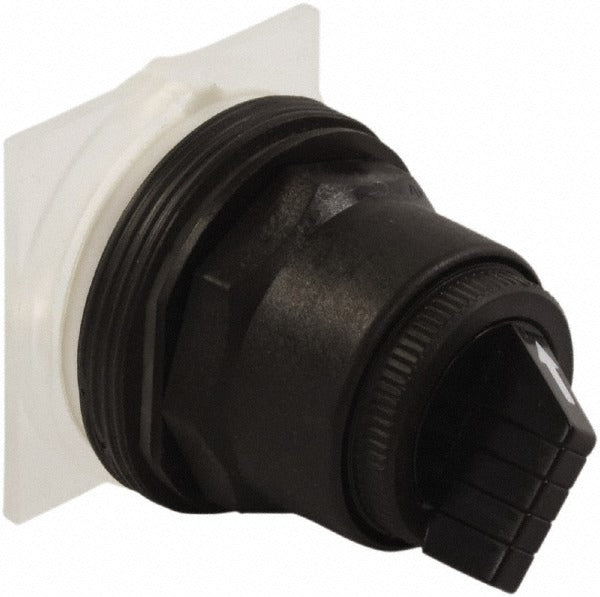

Schneider Electric 9001SKS12B 2 Position Maintained Selector Switch

Product Description

The SCHNEIDER ELECTRIC 9001SKS12B is a 2-position maintained selector switch operator designed for industrial and commercial panel-mount control applications. This unit uses a black knob-style operator and holds its selected position after actuation — no spring return. The 30 mm mounting hole diameter fits standard 30 mm cutout panels. The bezel and operator are plastic construction with black finish. Resistance features include anti-corrosive, dust-resistant, oil-resistant, and weatherproof ratings, backed by NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosure compatibility. This is a switch operator only — no contact blocks are included. Licensed electricians and industrial controls technicians are the typical installers.

This selector switch operator is suited for residential, commercial, and light industrial control panels where a durable, maintained two-position selector is required. Typical applications include motor starters, machine control stations, and general-purpose selector duty on pushbutton operator stations. The NEMA 4X and 6 ratings make it appropriate for wet or washdown environments. The operator mounts through a standard 30 mm panel cutout, making it a fit for a wide range of enclosure assemblies and control station housings.

Key Features

• 2-position maintained action — holds selected position without spring return
• Black knob-style operator, 30 mm panel mount cutout
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 rated for broad environmental compatibility
• Anti-corrosive, dust-resistant, oil-resistant, and weatherproof construction
• Plastic bezel and operator body in black finish
• UL Listed (File E42259, CCN NKCR), CSA LR25490 Class 3211 03, and CE certified
• Selector switch operator only — no contact blocks included

Compatibility

Designed as an OEM-style operator for 30 mm panel-mount selector switch assemblies. Compatible with enclosures rated to NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13. Contact blocks must be sourced separately and are not included with this operator.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the control panel and verify absence of voltage before mounting or wiring any operator components. The operator mounts through a 30 mm panel cutout and should be secured per the manufacturer assembly instructions before attaching any contact block accessories. Do not exceed the enclosure NEMA rating when installing in wet or corrosive environments.
