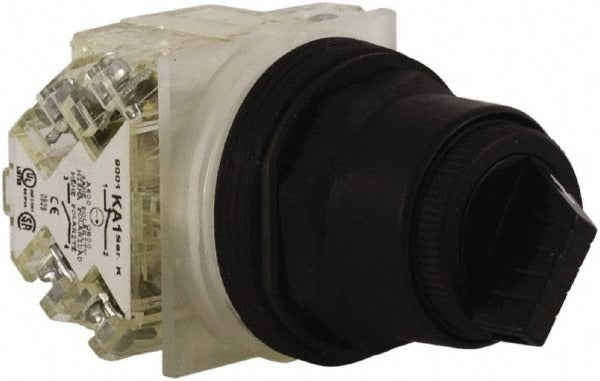

Schneider Electric 9001SKS11BH2 Selector Switch 2-position

Product Description

The SCHNEIDER ELECTRIC 9001SKS11BH2 is a 2-position maintained selector switch designed for industrial and commercial control panel applications. It operates at up to 600 volts AC with a 10-amp rating and mounts through a 30 mm panel cutout using a screw-terminal connection. The black knob operator stays in the selected position after actuation, making it suitable for circuits that require a persistent on/off or hand/auto state. The plastic bezel is rated for anti-corrosive, dust-resistant, oil-resistant, and weatherproof environments. Licensed electricians and panel builders are the primary installers of this component.

This selector switch is built for panel-mount installations in both light industrial and demanding outdoor or wet-location environments. Its NEMA ratings of 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 cover a wide range of enclosure types, from general-purpose indoor panels to watertight and corrosion-resistant enclosures. Typical applications include motor control centers, machine control panels, HVAC unit controllers, and pump control stations where a durable, maintained-contact operator is required.

Key Features

• 2-position maintained (MA) operation holds selected position without continued operator input
• Rated 600 volts AC and 10 amps for use in standard industrial control circuits
• 30 mm panel mount hole diameter with screw terminal connections for secure wiring
• Black knob operator with black plastic bezel for clear visual identification
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 rated for broad environmental compatibility
• Certified to CE, CSA LR25490 Class 3211 03, and UL Listed File E42259 CCN NKCR

Compatibility

Designed as an OEM-style panel-mount selector switch compatible with 30 mm mounting cutout control panels and enclosures rated NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the control panel and verify zero voltage at the mounting location before beginning work. Secure the switch through the 30 mm panel cutout and tighten screw terminals to the panel wiring per the wiring diagram supplied with the unit. Do not exceed the 600V AC and 10-amp ratings for the intended control circuit.
