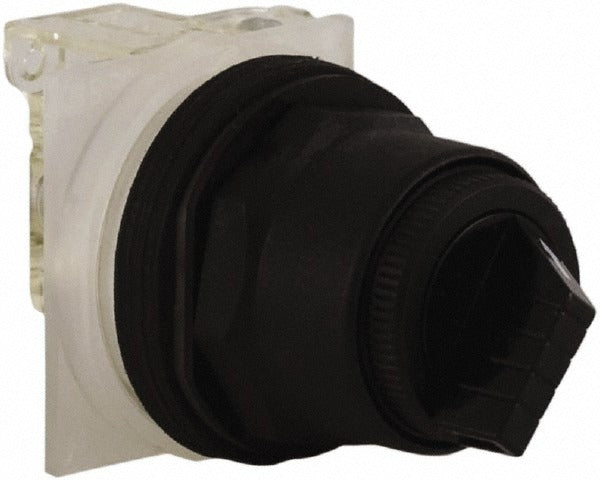

Schneider Electric 9001SKS11BH1 Selector Switch 600V 10A

Product Description

The SCHNEIDER ELECTRIC 9001SKS11BH1 is a 2-position maintained selector switch designed for panel-mount industrial control applications. It operates at up to 600 volts AC and is rated for 10 amps, making it suitable for machine control, process equipment, and motor circuit switching. The switch features a black knob operator with a plastic bezel and a 30 mm mounting hole diameter, fitting standard 30 mm cutout panels. The maintained (MA) action holds the selected position until physically moved, providing a stable on/off or selector function without spring return. Licensed electricians and industrial controls technicians are the typical installers for this device.

This selector switch is rated for use in demanding environments, carrying NEMA ratings of 1, 2, 3, 3R, 4, 4X, 6, 12, and 13. That range covers general-purpose indoor and outdoor enclosures, as well as oil-tight, dust-tight, and watertight applications. It is well-suited for factory floors, pump control panels, HVAC equipment panels, and outdoor electrical enclosures where moisture, dust, or oil exposure is a concern. The screw terminal connection type simplifies field wiring and replacement work on existing panels.

Key Features

• 2-position maintained action holds selected position without spring return
• 600V AC rating suitable for heavy-duty panel control circuits
• 10 amp current rating with screw terminal connections
• 30 mm panel cutout fits standard industrial control enclosures
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 rated for broad environmental protection
• Anti-corrosive, dust-resistant, oil-resistant, and weatherproof construction
• CE, CSA, and UL Listed certifications (UL File E42259, CCN NKCR)

Compatibility

Designed as an OEM-style replacement or upgrade selector switch for 30 mm panel cutout industrial control enclosures and machine control panels requiring a maintained 2-position knob operator.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before beginning installation or removal of the switch. Verify the panel cutout is 30 mm and that the enclosure NEMA rating is compatible with the installation environment. Screw terminals should be tightened securely to the wire gauge used per the terminal manufacturer specifications.
