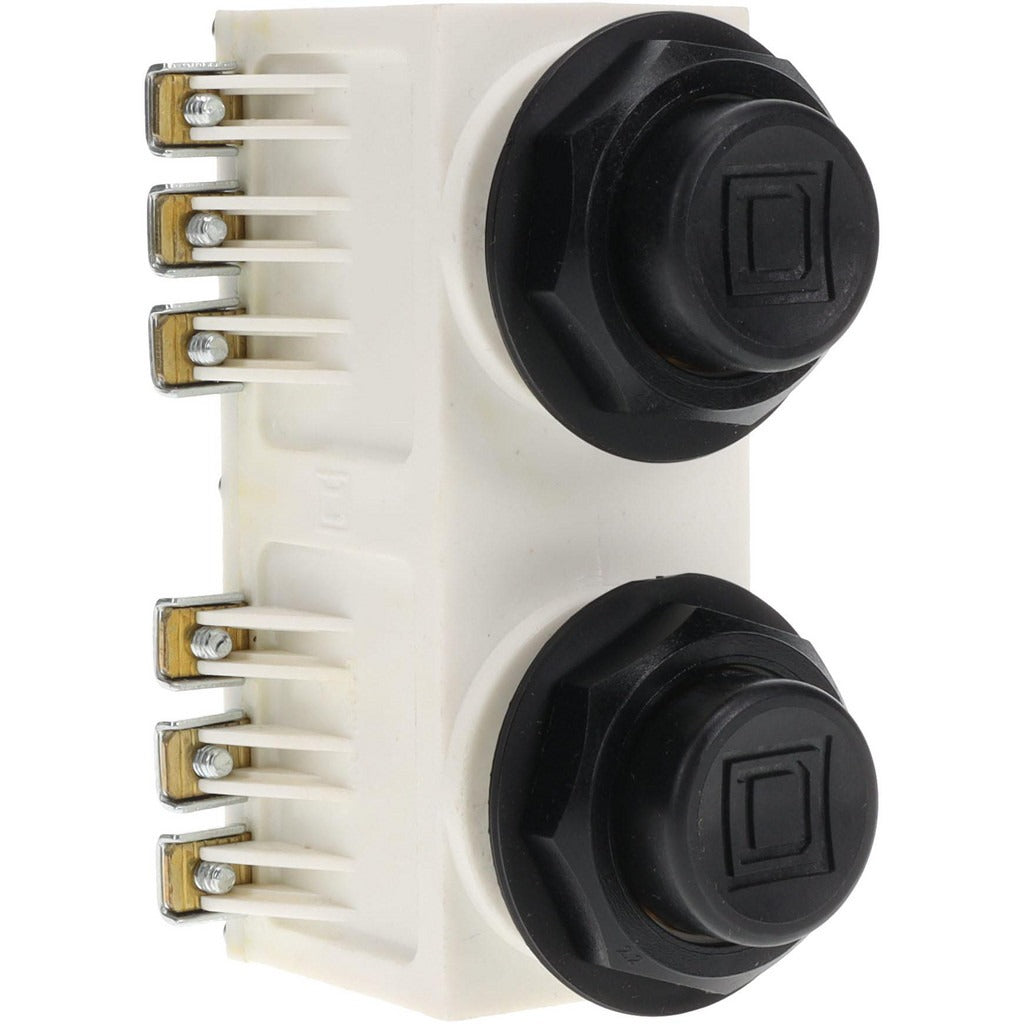

Schneider Electric 9001SKRU5 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001SKRU5 is a momentary push-button switch rated for 600 volts AC and 10 amps, designed for industrial and commercial control panel applications. It features an extended (straight) push-button type and a 30 mm mounting hole diameter, making it a standard fit for panel cutouts in that size class. Licensed electricians and panel builders install this switch as a control input device in motor control centers, machine control enclosures, and related electrical assemblies. It carries CE, CSA, and UL listings, confirming compliance with recognized electrical safety standards.

This switch is suited for use in industrial control panels, commercial electrical equipment, and automation systems requiring a momentary contact input. The momentary operation means the circuit is active only while the button is depressed, which is typical for start, stop, and jog functions in motor control and process automation applications. Its 30 mm mounting configuration is a widely used industry-standard size for panel-mount operator devices.

Key Features

• Momentary (MO) operation for start, stop, and jog control functions
• Rated 600 volts AC and 10 amps for industrial-grade circuit control
• Extended (straight) push-button type for positive tactile actuation
• 30 mm mounting hole diameter fits standard panel cutouts
• CE, CSA LR25490 Class 3211 03, and UL Listed (File No. E42259 CCN NKCR) certifications

Compatibility

Designed as an OEM-style replacement or direct-fit operator device for industrial control panels and enclosures with a 30 mm mounting hole diameter.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the panel or enclosure before installing or wiring the switch. Verify that the circuit voltage and amperage do not exceed the rated 600 volts AC and 10 amps. Confirm the panel cutout is a true 30 mm diameter before mounting to ensure a secure fit.
