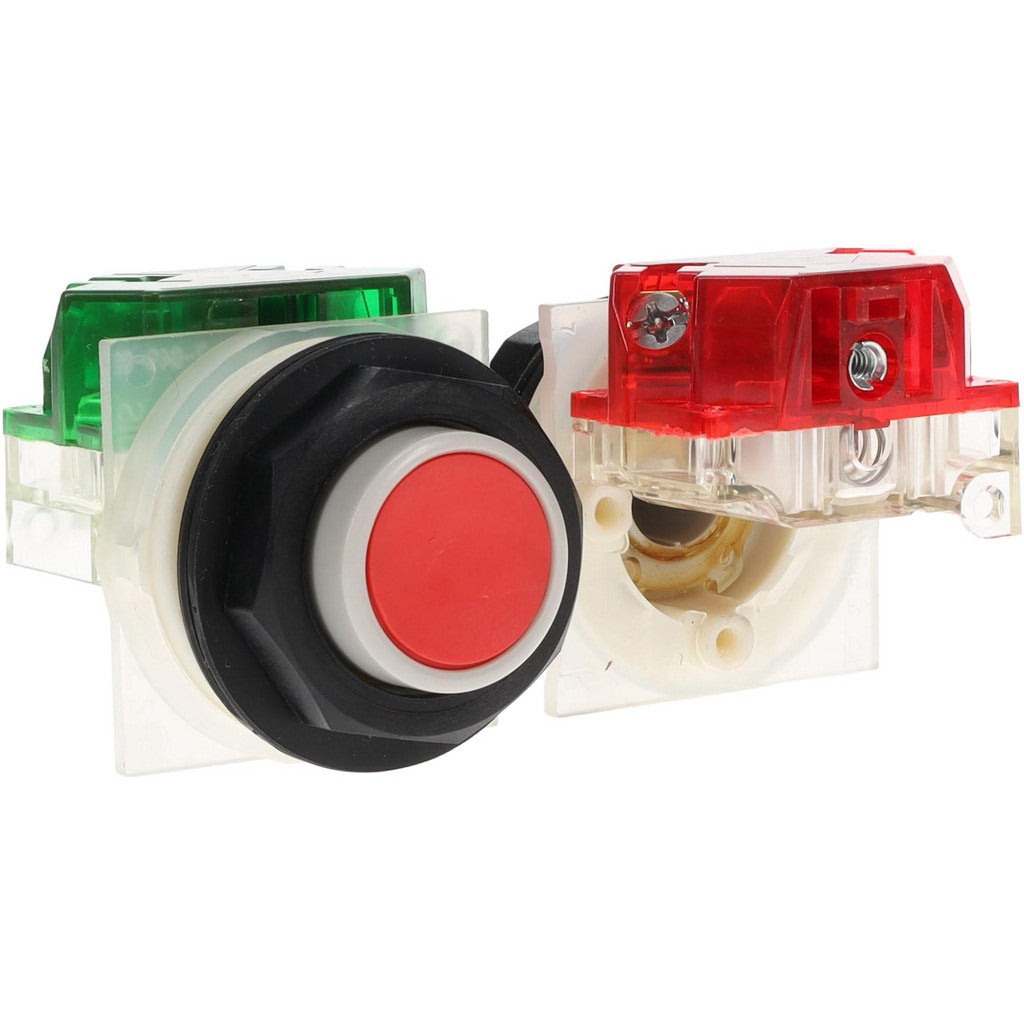

Schneider Electric 9001SKRU10 Push-button Switch 600VAC

Product Description

The SCHNEIDER ELECTRIC 9001SKRU10 is a 30 mm momentary push-button switch rated for 600 volts AC and 10 amps. It features an extended (straight) push-button profile and is designed for industrial control panel and machine wiring applications. This switch is installed by licensed electricians and control panel integrators in environments where a momentary contact closure or interruption is required. It meets CE, CSA, and UL listing standards, making it suitable for use in facilities with strict compliance requirements. The 9001SKRU10 is a direct replacement-grade component intended for maintenance, repair, and new-build panel work.

This push-button switch is used in industrial and commercial control systems where a 30 mm panel cutout is the standard mounting format. Typical applications include motor starter control circuits, conveyor systems, machine tool panels, and process control enclosures. The momentary operation type means the contact state returns to its default position once the operator releases the button. It is well-suited for start and stop circuits in low-voltage control wiring where a reliable, standards-compliant switching element is required.

Key Features

• 600 volts AC rating supports a wide range of industrial control voltage levels
• 10-amp rated for compatibility with standard control circuit loads
• 30 mm mounting hole diameter fits standard industrial panel cutouts
• Momentary (MO) operation returns to default state upon release
• Extended (straight) button profile for clear operator identification
• CE, CSA LR25490 Class 3211 03, and UL Listed (File No. E42259 CCN NKCR) certifications

Compatibility

Designed as an OEM-style replacement for 30 mm industrial push-button switch assemblies in standard control panel enclosures requiring a momentary contact switch at 600 volts AC.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize the control panel and verify zero voltage with a meter before removing or installing the switch. Ensure the panel cutout is 30 mm and that the switch body seats flush before securing the mounting hardware. Do not exceed the 600 volts AC and 10-amp ratings of this device.
