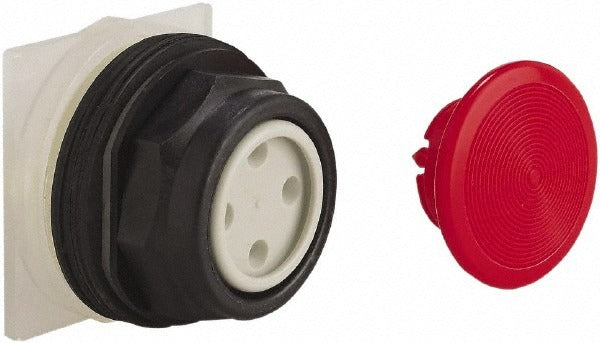

Schneider Electric 9001SKR4R Push-button Switch 30mm Momentary Red

Product Description

The SCHNEIDER ELECTRIC 9001SKR4R is a momentary push-button switch designed for industrial and commercial control panel applications. It features a 30 mm mounting hole diameter and an extended straight operator in red, making it a standard fit for machine control, motor starter, and process control enclosures. The momentary (MO) operation type means the switch returns to its default state when released, providing reliable momentary contact for start, stop, or jog functions. At 0.11 pounds, this compact operator is straightforward to install into any panel cutout meeting the 30 mm standard. Electrical and maintenance technicians will find this switch a direct-fit solution for new builds and replacement work alike.

This push-button switch is suited for use in industrial control panels, motor control centers, and automation enclosures in both commercial and light industrial environments. Its NEMA ratings of 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 make it appropriate for a wide range of indoor and outdoor enclosure types, including watertight and corrosion-resistant applications. The red extended operator is commonly used to indicate stop or emergency functions in control logic layouts, following standard panel design conventions.

Key Features

• 30 mm mounting hole diameter — standard industrial panel cutout size
• Momentary (MO) operation — contact closes only while depressed, returns on release
• Extended straight push-button operator in red for clear function identification
• NEMA ratings: 1, 2, 3, 3R, 4, 4X, 6, 12, 13 — covers indoor, outdoor, watertight, and corrosion-resistant enclosures
• Compact form factor: 2 inches high, 2.4 inches wide, 3.7 inches long
• Lightweight at 0.11 pounds for easy handling and panel integration

Compatibility

Designed as an OEM-style replacement or new-install operator for industrial control panels and enclosures requiring a standard 30 mm momentary push-button switch.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC guidelines and applicable local codes. De-energize the control panel and verify zero voltage before beginning any wiring work. The operator mounts through a 30 mm panel cutout and typically secures with a threaded collar nut — ensure the enclosure wall thickness is compatible before tightening. Do not exceed the NEMA rating of the enclosure when selecting this switch for outdoor or wet-location installations.
