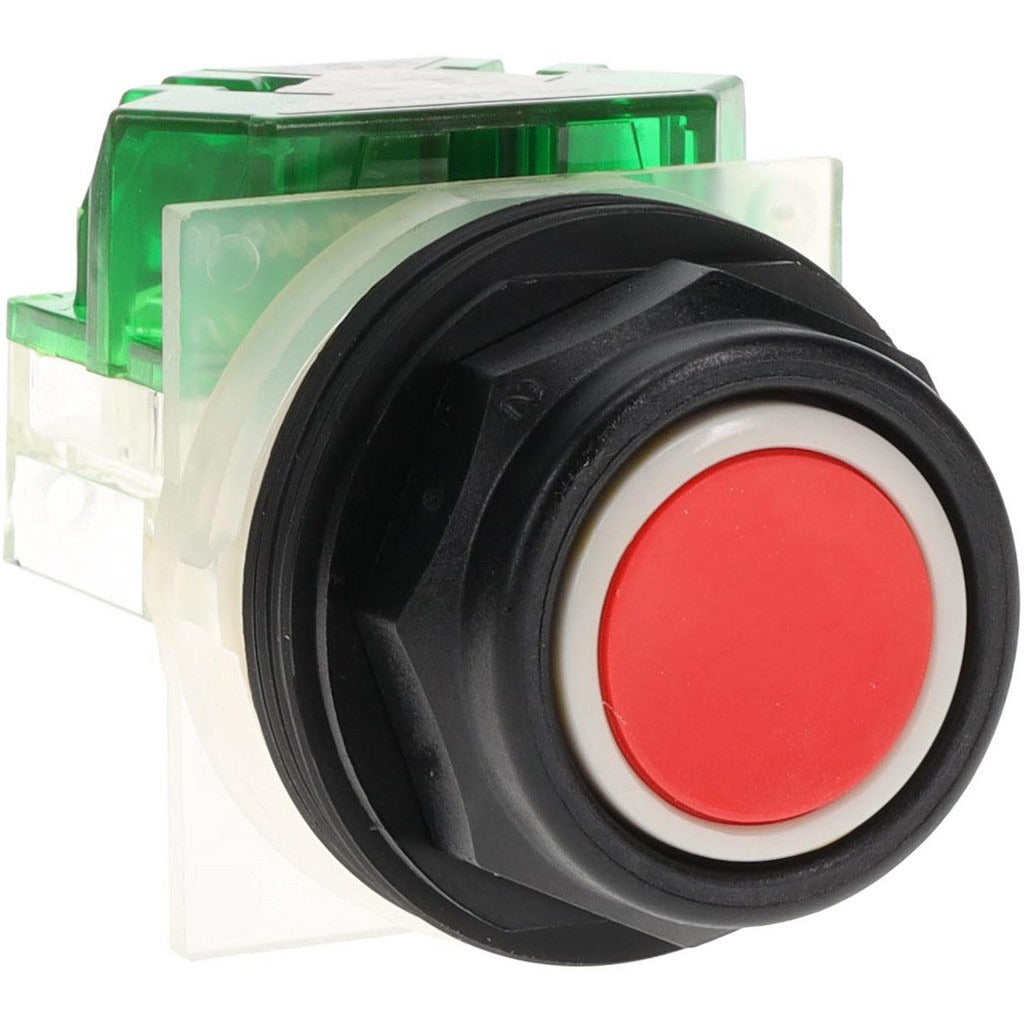

Schneider Electric 9001SKR1RH5 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001SKR1RH5 is a momentary-action push-button switch rated for 600 volts AC and 10 amps, designed for industrial and commercial control panel applications. It features a red extended (straight) push button with a normally open (NO) contact configuration and mounts through a 30 mm panel hole. Licensed electricians and control panel builders install this switch in machine control, process equipment, and operator interface stations where a momentary actuation signal is required. The NEMA 4X rating makes it suitable for wet, corrosive, and washdown environments.

This switch is used in industrial control panels, motor starter enclosures, and operator stations across commercial and light industrial installations. The red button color conventionally signals stop or emergency-action functions in control circuit wiring. The momentary (MO) operation means the contact closes only while the button is depressed and returns to open when released, making it appropriate for start, stop, jog, or reset circuits operating at up to 600V AC.

Key Features

• 600V AC rating supports high-voltage control circuit applications
• Momentary (MO) operation with normally open (NO) contact configuration
• Red extended (straight) push button for clear operator identification
• 30 mm mounting hole diameter fits standard 30 mm panel cutouts
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 enclosure ratings for broad environmental suitability
• 10-amp contact rating for compatibility with typical control circuit loads

Compatibility

Designed as an OEM-style replacement or new-installation push-button switch for 30 mm industrial control panel cutouts requiring a momentary NO contact rated at 600V AC.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and local codes. De-energize and lock out the control panel before removing or installing any switch component. Verify the panel cutout measures 30 mm before installation. Do not exceed the 600V AC and 10-amp contact ratings for the circuit in which this switch is installed.
