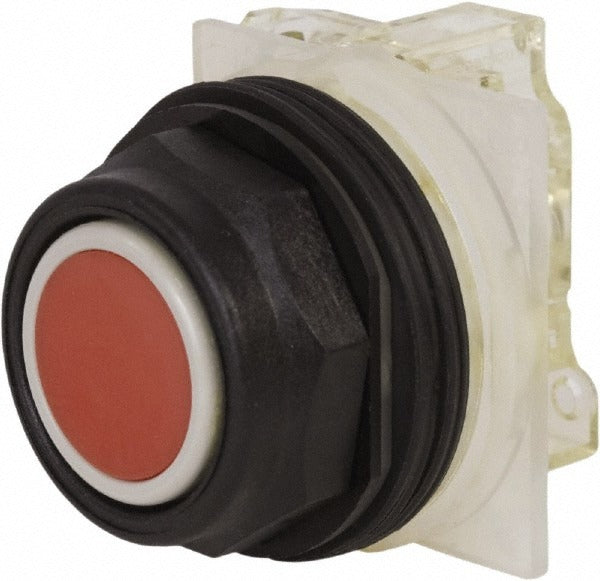

Schneider Electric 9001SKR1RH13 Push-button Switch 600V

Product Description

The SCHNEIDER ELECTRIC 9001SKR1RH13 is a momentary push-button switch rated for 600 volts AC and 10 amps, designed for industrial control panel applications. It features a flush-style, octagon-shaped red button constructed of plastic and mounts through a 30 mm diameter panel hole. The NC/NO contact configuration provides both normally closed and normally open switching in a single unit. Licensed electricians and control panel builders install this switch in machine control, motor starter, and process control enclosures where a reliable momentary contact is required.

This switch is suited for use in residential, commercial, and industrial environments where NEMA-rated enclosures are required. The 9001SKR1RH13 carries NEMA ratings of 1, 2, 3, 3R, 4, 4X, 12, and 13, making it appropriate for indoor dry locations through outdoor and corrosion-resistant installations. It is a common fit for control panels requiring a red momentary operator in a 30 mm cutout, including machine tool, conveyor, and pump control stations.

Key Features

• Momentary (MO) operation with NC/NO contact configuration in a single switch
• 600V AC rating at 10 amps for robust industrial control circuit use
• Flush-mount, octagon-shaped red plastic button for clear operator identification
• 30 mm mounting hole diameter for standard industrial panel cutouts
• NEMA ratings 1, 2, 3, 3R, 4, 4X, 12, and 13 for broad enclosure compatibility
• Meets CSA, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, and JIS C 852 standards

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for industrial control panels and enclosures using standard 30 mm mounting hole cutouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) and applicable local codes. De-energize and lock out the control panel before installing or replacing any switch operator. Verify that the panel enclosure NEMA rating meets or exceeds the environmental requirements of the installation site. Confirm contact block wiring is secure and that the NC/NO circuit connections match the control logic before restoring power.
