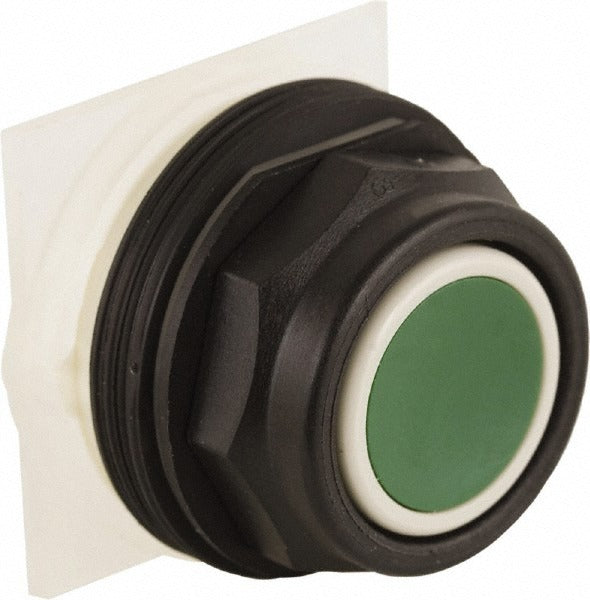

Schneider Electric 9001SKR1G Push-button Switch 30mm Green

Product Description

The SCHNEIDER ELECTRIC 9001SKR1G is a 30 mm momentary push-button switch operator designed for industrial and commercial control panel applications. It features a green extended straight-style button head and a momentary (MO) operation type, meaning the contact state changes only while the button is depressed. The unit mounts in a standard 30 mm panel cutout and carries a broad NEMA rating that covers wet, oily, and corrosive environments. Electricians and controls technicians install this type of operator when wiring start buttons, jog circuits, and signal inputs on motor control centers, machine panels, and control enclosures.

This push-button operator is suited for both light industrial and heavy-duty commercial control panel installations. The green color convention makes it a standard choice for start or run functions on motor starters, conveyor controls, and process equipment panels. The extended button profile provides a raised target that is easy to locate and actuate while wearing gloves. Its NEMA 4X rating also makes it appropriate for wash-down and outdoor environments where moisture ingress is a concern.

Key Features

• 30 mm mounting hole diameter fits standard 30 mm panel cutouts
• Momentary operation — contact state held only while button is pressed
• Extended straight button profile for easy actuation in gloved-hand environments
• Green operator color — conventional for start or run control functions
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 rated for wide environmental compatibility including wet and corrosive locations

Compatibility

Designed as an OEM-style replacement or new-installation operator for 30 mm push-button control station assemblies requiring a momentary green extended-head operator.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NFPA 70 (NEC) and applicable local codes. De-energize and lock out the control panel circuit before removing an existing operator or installing this unit. The operator mounts through a 30 mm panel cutout and secures with the provided retaining ring or nut — do not overtighten the mounting hardware against thin panel material. Verify that the contact block or switch body attached to this operator is rated for the load circuit voltage and current before returning the panel to service.
