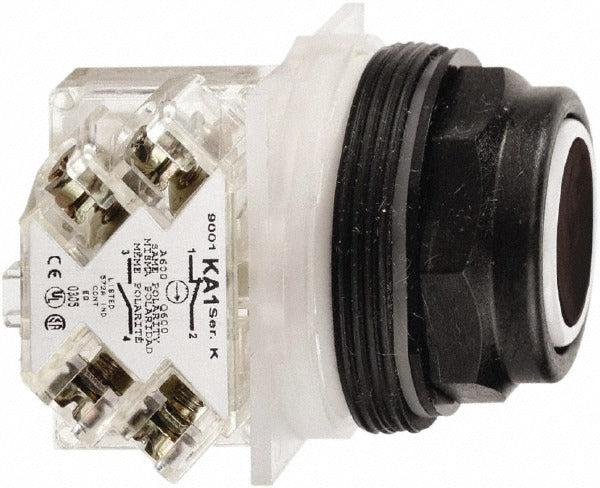

Schneider Electric 9001SKR1BH5 Momentary Push Button Switch

Product Description

The SCHNEIDER ELECTRIC 9001SKR1BH5 is a momentary (MO) push button switch designed for industrial control panel and machinery applications. It features a 30 mm mounting hole diameter, a flush-style black octagon plastic button, and a normally open (NO) contact configuration rated at 600 volts AC and 10 amps. Licensed electricians and industrial maintenance technicians install this switch in control enclosures where a momentary contact closure is required to trigger a circuit event such as starting a motor, activating a solenoid, or signaling a PLC input. The unit weighs 0.15 pounds and is built to meet multiple international safety standards.

This switch is suited for use in both residential and commercial control panel builds, as well as industrial machinery enclosures. Its NEMA ratings of 1, 2, 3, 3R, 4, 4X, 12, and 13 cover a wide range of environmental conditions, from indoor dry locations through outdoor and washdown environments. The flush button profile reduces accidental actuation, making it appropriate for operator interface panels where inadvertent contact is a concern. It is a direct-install solution for new panel construction or field replacement of a worn or failed momentary switch.

Key Features

• Momentary (MO) operation with normally open (NO) contact configuration
• 600 volts AC rating at 10 amps for compatibility with standard industrial control circuits
• 30 mm mounting hole diameter fits standard 30 mm panel cutouts
• Flush-mount black octagon plastic button reduces accidental actuation
• NEMA ratings 1, 2, 3, 3R, 4, 4X, 12, and 13 for broad environmental suitability
• Meets CSA, UL 508, EN/IEC 60947, and JIS standards for international compliance

Compatibility

Designed as an OEM-style replacement or new-installation push button switch for industrial control panels and machinery enclosures requiring a 30 mm momentary push button with NO contact configuration.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the control panel before removing or installing the switch. A 30 mm panel punch or pre-drilled 30 mm hole is required for mounting. Verify contact configuration and voltage rating match the existing circuit before energizing.
