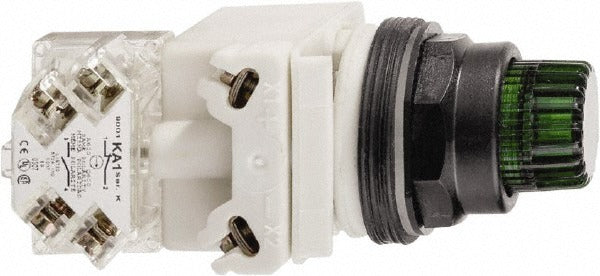

Schneider Electric 9001SK2L1GH13 Push-button Switch

Product Description

The SCHNEIDER ELECTRIC 9001SK2L1GH13 is a momentary push-button switch rated for 600 volts AC and 10 amps, designed for industrial control panel applications. Featuring a green extended (straight) push button, this unit mounts through a 30 mm panel cutout and provides both normally closed (NC) and normally open (NO) contact configurations in a single switch body. At 0.45 pounds, it is a compact control device suited for use in motor control centers, machine control panels, and general industrial automation installations. Licensed electricians and industrial controls technicians are the primary trades handling installation and integration of this switch.

This switch is suited for a wide range of industrial and commercial environments. Its NEMA ratings of 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 allow deployment in general-purpose indoor enclosures as well as outdoor, watertight, and corrosion-resistant applications. The 30 mm mounting hole diameter is a standard dimension in industrial control components, making this switch compatible with standard 30 mm operator cutouts found in many industrial enclosures and panel doors. The green button color is the conventional designation for start or run functions in control circuit applications.

Key Features

• Momentary (MO) operation with NC/NO contact configuration in one unit
• 600V AC rating supports a broad range of control circuit voltages
• 10-amp current rating for reliable industrial control duty
• Green extended (straight) push button for high visibility and standard start-function identification
• NEMA 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 rated for versatile enclosure compatibility
• Standard 30 mm mounting hole diameter for direct panel installation

Compatibility

Designed as an OEM-style replacement or new-installation push-button operator for 30 mm industrial control panel cutouts where a momentary NC/NO contact block and 600V AC rating are required.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the control panel before removing an existing switch or installing this unit. Verify that the panel cutout measures 30 mm before mounting. Confirm that the contact block wiring matches the required NC or NO circuit path before restoring power.
