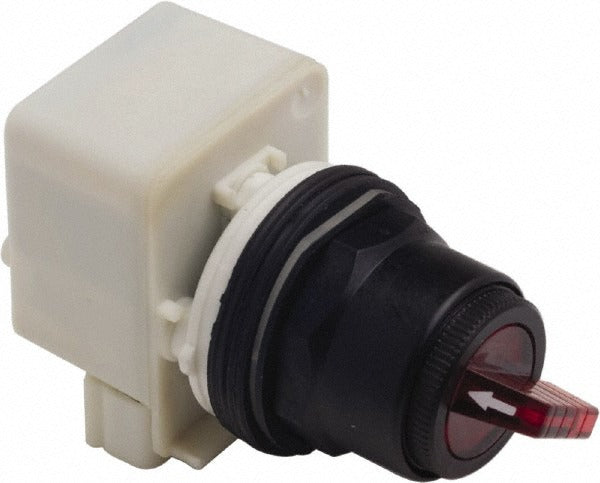

Schneider Electric 9001SK11J1R 2-position Selector Switch

Product Description

The SCHNEIDER ELECTRIC 9001SK11J1R is a 2-position maintained selector switch operator designed for industrial control panel applications. It features a red knob-style push button operator with a black plastic bezel and mounts through a standard 30mm panel cutout. The maintained (MA) operation type means the switch holds its selected position until manually moved, making it well suited for on/off or mode-selection control circuits. Rated across multiple NEMA enclosure types including NEMA 4X, this operator delivers resistance to corrosion, dust, oil, and weather. Licensed electricians and control panel builders install this component during panel fabrication or field replacement of worn switch operators.

This selector switch operator is used in residential, commercial, and light industrial control panels where a durable, clearly identifiable 2-position selector is needed. The red knob operator provides a high-visibility control point for mode selection or circuit switching. Typical applications include motor control centers, HVAC unit control panels, pump control stations, and machine operator interfaces. It is a panel-mount operator only and does not include contact blocks, so it pairs with separately sourced contact block assemblies.

Key Features

• 2-position maintained (MA) operation holds position without spring return
• Red knob-style operator with black plastic bezel for clear visual identification
• 30mm panel mount hole diameter for standard industrial cutout compatibility
• NEMA ratings 1, 2, 3, 3R, 4, 4X, 6, 12, and 13 covering wet, oily, and outdoor environments
• Anti-corrosive, dust-resistant, oil-resistant, and weatherproof construction
• Certified to CE, CSA LR25490 Class 3211 03, and UL Listed File E42259 CCN NKCR
• Selector switch operator only — no contact blocks included (zero contact blocks)

Compatibility

Designed as an OEM-style replacement operator for 30mm industrial control panel selector switch assemblies. No specific compatible model numbers or system families were provided in the product data.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the control panel before removing or installing any switch operator. This is an operator-only component and requires a compatible 30mm contact block assembly to complete the switching circuit. Verify NEMA enclosure rating requirements for the installation environment before mounting.
